1" Horizontal
LOCALLY SoURCED. AMERICAN MADE.
Each slat of our 1” horizontal blinds are custom cut by our Monroe, Washington-based manufacturing department using locally-sourced aluminum. We don't leave your customers guessing which size they may need at the big box stores. We provide you with a clean, finished product that will fit their windows perfectly.
Photos
1” Horizontal colors
*All colors represented on-screen or in print may not be true to product coloring and can be different than the actual product. If you are concerned about product color, please feel free to order a sample swatch with customer service.
Apricity
Breve
Charcoal
China Stone
Chino

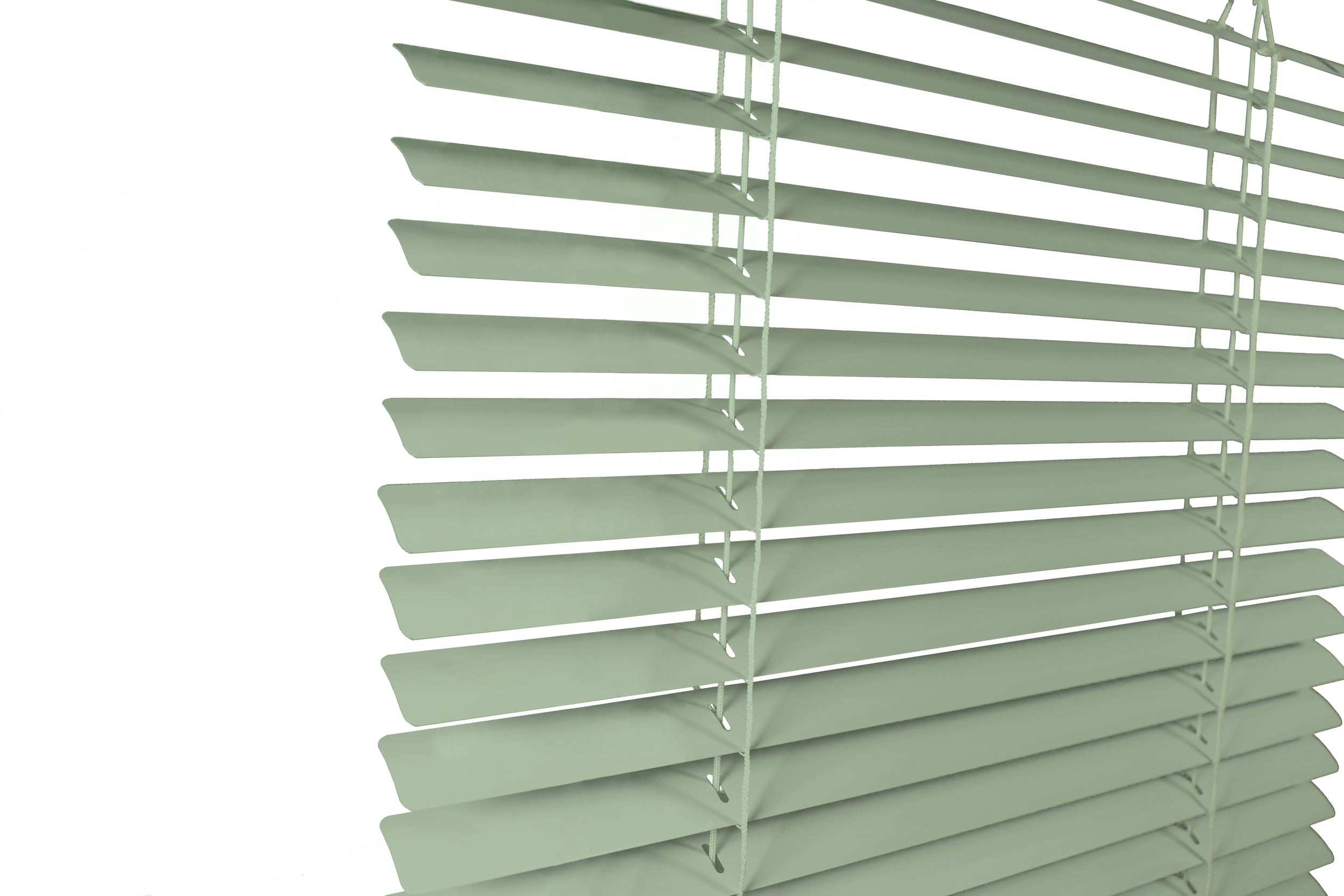

Coastal
Coconut
Cool Sherbet
Daybreak
Decaf
Domino
Dream White
Earthenware
Faded Sky
Fusty Pink
Garnet Red
Gingerbread
Golf Green
Grey Skies
Limestone
London Fog
Malt
Matcha
Milk Chocolate
Mink
Navy Grey
Oxford Blue
Pacific Green
Pink Petal

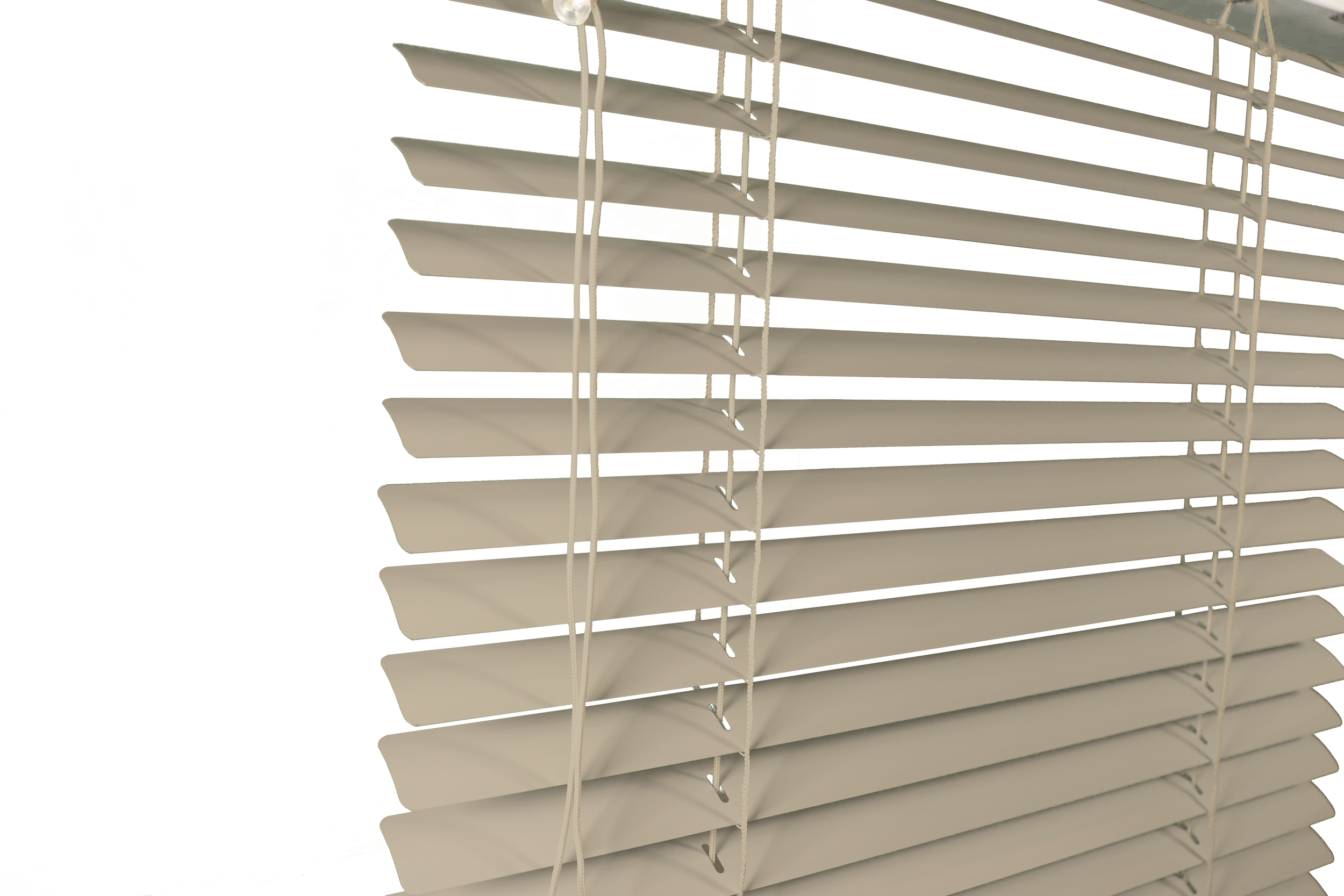

Praline
Rain Forest
Raw Umber
Razed Crimson
Sahara
Sapphire
Sea Cloud
Slooth
Tawny
The White
UN Grey
White Sand
Windrift
Specification Info
1" Horizontals Mini Aluminum - 1"x1" Headrail
Mini Privacy
Mini Economy
Mini Deluxe
Mini Privacy Premium
Mini Economy Premium
Mini Deluxe Premium
Mini Privacy
PRODUCUCT SPECIFICATIONS
| Head Rail | 1” x 1”x 0.024” Steel. Treated to resist corrosion. Baked-on paint, color coordinated to slats |
| Bottom Rail | C-shaped .024” Steel. Treated to resist corrosion. Baked-on paint, color coordinated to slats |
| Slats | Aluminum Heat Treated and Tempered, 1” wide x .006 thick |
| Valence | Double Slat with clips to mount |
| Tilter | Shall be of worm gear construction, enclosed in housing of engineering polymer; gear and shaft shall be of engineering polymer with slip clutch mechanism. May be positioned at right or left with or without cord lock |
| Tilt Rod | Solid steel with corrosion resistant finish |
| Tilt Wands | Extruded, clear solid acrylic wand |
| Cord Lock | Snap-In-Design and incorporates stainless steel wear guard over which cords pass and a floating type locking pin. Locking pin shall be free of abrasive teeth and offer minimum wear to the cord |
| Lift Cords | Two-ply polyester cord filler and braided polyester jacket |
| Braided Ladders | 100% polyester yarn color coordinated with the slats. Spacing shall not be more than 18.5mm (approximately 17 slats per foot of drop) |
| Installation Brackets | 1 9/16” x 1 3/8” x 1 7/8” x.042 thick steel box brackets. Blinds over 48”shall have intermediate supports |
| Tassel | Complies with all safety requirements |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½” deducted at the factory from width. See Product Limits |
| Commercial Color Options | The White (M1043), Polar Bear (M1007), China Stone (M1013), Coconut (M1022) |
PRODUCT LIMITS
| Controls (Manual) | Min. Width | Max. Width | Min. Drop | *Max Drop |
|---|---|---|---|---|
| Tilt-Only Center of Head Rail | 5" | 132" | 6" | 126" |
| Split Controls (L/R or R/L) | 9 1/2" | 132" | 6" | 126" |
| Same-Side Controls (L/L or R/R) | 9 1/2" | 132" | 6" | 126" |
*Maximum Sq. Footage *126 sq. ft. under warranty
Exceptions available upon request.
Mini Economy
PRODUCUCT SPECIFICATIONS
| Head Rail | 1” x 1”x 0.024” Steel. Treated to resist corrosion. Baked-on paint, color coordinated to slats |
| Bottom Rail | C-shaped .024” Steel. Treated to resist corrosion. Baked-on paint, color coordinated to slats |
| Slats | Aluminum Heat Treated and Tempered, 1” wide x .006 thick |
| Valence | Double Slat with clips to mount. |
| Tilter | Shall be of worm gear construction, enclosed in housing of engineering polymer; gear and shaft shall be of engineering polymer with slip clutch mechanism. May be positioned at right or left with or without cord lock. |
| Tilt Rod | Shall be solid steel with corrosion resistant finish. |
| Tilt Wands | Shall be extruded, clear solid acrylic wand. |
| Cord Lock | Shall be of Snap-In-Design and incorporates stainless steel wear guard over which cords pass and a floating type locking pin. Locking pin shall be free of abrasive teeth and offer minimum wear to the cord. |
| Lift Cords | Shall be two-ply polyester cord filler and braided polyester jacket |
| Braided Ladders | Shall be 100% polyester yarn color coordinated with the slats. Spacing shall not be more than 22.5 mm (approximately 13 slats per foot of drop). |
| Installation Brackets | 1 9/16” x 1 3/8” x 1 7/8” x.042 thick steel box brackets. Blinds over 48”shall have intermediate supports. |
| Tassel | Shall comply with all safety requirements |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½” deducted at the factory from width. See Product Limits |
| Commercial Color Options | The White (M1043), Polar Bear (M1007), China Stone (M1013), Coconut (M1022) |
PRODUCT LIMITS
| Controls (Manual) | Min. Width | Max. Width | Min. Drop | *Max Drop |
|---|---|---|---|---|
| Tilt-Only Center of Head Rail | 5" | 132" | 6" | 126" |
| Split Controls (L/R or R/L) | 9 1/2" | 132" | 6" | 126" |
| Same-Side Controls (L/L or R/R) | 9 1/2" | 132" | 6" | 126" |
*Maximum Sq. Footage *126 sq. ft. under warranty
Exceptions available upon request.
Mini Deluxe
PRODUCUCT SPECIFICATIONS
| Head Rail | 1” x 1”x 0.024” Steel. Treated to resist corrosion. Baked-on paint, color coordinated to slats. |
| Bottom Rail | C-Shaped .024” Steel. Treated to resist corrosion. Baked-on paint, color coordinated to slats. |
| Slats | Aluminum Heat Treated and Tempered, 1” wide x .006 thick. |
| Valence | Double Slat with clips to mount. |
| Tilter | Shall be of worm gear construction, enclosed in housing of engineering polymer; gear and shaft shall be of engineering polymer with slip clutch mechanism. May be positioned at right or left with or without cord lock |
| Tilt Rod | Shall be solid steel with corrosion resistant finish. |
| Tilt Wands | Shall be extruded, clear solid acrylic wand. |
| Cord Lock | Shall be of Snap-In-Design and incorporates stainless steel wear guard over which cords pass and a floating type locking pin. Locking pin shall be free of abrasive teeth and offer minimum wear to the cord. |
| Lift Cords | Shall be two-ply polyester cord filler and braided polyester jacket. |
| Braided Ladders | Shall be 100% polyester yarn color coordinated with the slats. Spacing shall not be more than 21.5 mm (approximately 14 slats per foot of drop). |
| Installation Brackets | 1 9/16” x 1 3/8” x 1 7/8” x.042 thick steel box brackets. Blinds over 48”shall have intermediate supports. |
| Tassel | Shall comply with all safety requirements |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½” deducted at the factory from width. See Product Limits |
| Commercial Color Options | The White (M1043), Polar Bear (M1007), China Stone (M1013), Coconut (M1022) |
PRODUCT LIMITS
| Controls (Manual) | Min. Width | Max. Width | Min. Drop | *Max Drop |
|---|---|---|---|---|
| Tilt-Only Center of Head Rail | 5" | 132" | 6" | 126" |
| Split Controls (L/R or R/L) | 9 1/2" | 132" | 6" | 126" |
| Same-Side Controls (L/L or R/R) | 9 1/2" | 132" | 6" | 126" |
*Maximum Sq. Footage *126 sq. ft. under warranty
Exceptions available upon request.
Mini Privacy Premium
PRODUCUCT SPECIFICATIONS
| Head Rail | 1” x 1”x 0.024” Steel. Treated to resist corrosion. Baked-on paint, color coordinated to slats. |
| Bottom Rail | C-Shaped .024” Steel. Treated to resist corrosion. Baked-on paint, color coordinated to slats. |
| Slats | Aluminum Heat Treated and Tempered, 1” wide x .008 thick. |
| Valence | Double Slat with clips to mount. |
| Tilter | Shall be of worm gear construction, enclosed in housing of engineering polymer; gear and shaft shall be of engineering polymer with slip clutch mechanism. May be positioned at right or left with or without cord lock |
| Tilt Rod | Shall be solid steel with corrosion resistant finish. |
| Tilt Wands | Shall be extruded, clear solid acrylic wand. |
| Cord Lock | Shall be of Snap-In-Design and incorporates stainless steel wear guard over which cords pass and a floating type locking pin. Locking pin shall be free of abrasive teeth and offer minimum wear to the cord. |
| Lift Cords | Shall be two-ply polyester cord filler and braided polyester jacket. |
| Braided Ladders | Shall be 100% polyester yarn color coordinated with the slats. Spacing shall not be more than 18.5mm (approximately 17 slats per foot of drop). |
| Installation Brackets | 1 9/16” x 1 3/8” x 1 7/8” x.042 thick steel box brackets. Blinds over 48”shall have intermediate supports. |
| Tassel | Shall comply with all safety requirements |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½” deducted at the factory from width. See Product Limits |
| Commercial Color Options | The White (M1043), Polar Bear (M1007), Coconut (M1022) |
PRODUCT LIMITS
| Controls (Manual) | Min. Width | Max. Width | Min. Drop | *Max Drop |
|---|---|---|---|---|
| Tilt-Only Center of Head Rail | 5" | 132" | 6" | 126" |
| Split Controls (L/R or R/L) | 9 1/2" | 132" | 6" | 126" |
| Same-Side Controls (L/L or R/R) | 9 1/2" | 132" | 6" | 126" |
*Maximum Sq. Footage *126 sq. ft. under warranty
Exceptions available upon request.
Mini Economy Premium
PRODUCUCT SPECIFICATIONS
| Head Rail | 1” x 1”x 0.024” Steel. Treated to resist corrosion. Baked-on paint, color coordinated to slats. |
| Bottom Rail | C-Shaped .024” Steel. Treated to resist corrosion. Baked-on paint, color coordinated to slats. |
| Slats | Aluminum Heat Treated and Tempered, 1” wide x .008 thick. |
| Valence | Double Slat with clips to mount. |
| Tilter | Shall be of worm gear construction, enclosed in housing of engineering polymer; gear and shaft shall be of engineering polymer with slip clutch mechanism. May be positioned at right or left with or without cord lock |
| Tilt Rod | Shall be solid steel with corrosion resistant finish. |
| Tilt Wands | Shall be extruded, clear solid acrylic wand |
| Cord Lock | Shall be of Snap-In-Design and incorporates stainless steel wear guard over which cords pass and a floating type locking pin. Locking pin shall be free of abrasive teeth and offer minimum wear to the cord. |
| Lift Cords | Shall be two-ply polyester cord filler and braided polyester jacket. |
| Braided Ladders | Shall be 100% polyester yarn color coordinated with the slats. Spacing shall not be more than 22.5 mm (approximately 13 slats per foot of drop). |
| Installation Brackets | 1 9/16” x 1 3/8” x 1 7/8” x.042 thick steel box brackets. Blinds over 48”shall have intermediate supports. |
| Tassel | Shall comply with all safety requirements |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½” deducted at the factory from width. See Product Limits |
| Commercial Color Options | The White (M1043), Polar Bear (M1007), Coconut (M1022) |
PRODUCT LIMITS
| Controls (Manual) | Min. Width | Max. Width | Min. Drop | *Max Drop |
|---|---|---|---|---|
| Tilt-Only Center of Head Rail | 5" | 132" | 6" | 126" |
| Split Controls (L/R or R/L) | 9 1/2" | 132" | 6" | 126" |
| Same-Side Controls (L/L or R/R) | 9 1/2" | 132" | 6" | 126" |
*Maximum Sq. Footage *126 sq. ft. under warranty
Exceptions available upon request.
Mini Deluxe Premium
PRODUCUCT SPECIFICATIONS
| Head Rail | 1” x 1”x 0.024” Steel. Treated to resist corrosion. Baked-on paint, color coordinated to slats. |
| Bottom Rail | C-Shaped .024” Steel. Treated to resist corrosion. Baked-on paint, color coordinated to slats. |
| Slats | Aluminum Heat Treated and Tempered, 1” wide x .008 thick. |
| Valence | Double Slat with clips to mount. |
| Tilter | Shall be of worm gear construction, enclosed in housing of engineering polymer; gear and shaft shall be of engineering polymer with slip clutch mechanism. May be positioned at right or left with or without cord lock |
| Tilt Rod | Shall be solid steel with corrosion resistant finish. |
| Tilt Wands | Shall be extruded, clear solid acrylic wand. |
| Cord Lock | Shall be of Snap-In-Design and incorporates stainless steel wear guard over which cords pass and a floating type locking pin. Locking pin shall be free of abrasive teeth and offer minimum wear to the cord. |
| Lift Cords | Shall be two-ply polyester cord filler and braided polyester jacket. |
| Braided Ladders | Shall be 100% polyester yarn color coordinated with the slats. Spacing shall not be more than 21.5 mm (approximately 14 slats per foot of drop). |
| Installation Brackets | 1 9/16” x 1 3/8” x 1 7/8” x.042 thick steel box brackets. Blinds over 48”shall have intermediate supports. |
| Tassel | Shall comply with all safety requirements |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½”deducted at the factory from width. See Product Limits. |
| Commercial Color Options | The White (M1043), Polar Bear (M1007), Coconut (M1022) |
PRODUCT LIMITS
| Controls (Manual) | Min. Width | Max. Width | Min. Drop | *Max Drop |
|---|---|---|---|---|
| Tilt-Only Center of Head Rail | 5" | 132" | 6" | 126" |
| Split Controls (L/R or R/L) | 9 1/2" | 132" | 6" | 126" |
| Same-Side Controls (L/L or R/R) | 9 1/2" | 132" | 6" | 126" |
*Maximum Sq. Footage *126 sq. ft. under warranty
Exceptions available upon request.
1" Horizontal Custom Aluminum = 1"x1.5" Headrail
Custom Economy
Custom Economy Premium (Perforated Slats)
Custom Deluxe
Custom Privacy
Custom Economy Premium
Custom Economy - No Valence
Custom Deluxe Premium
Custom Deluxe Premium
Custom Economy
PRODUCUCT SPECIFICATIONS
| Head Rail | 1.5” x 1”x 0.024” Steel. Treated to resist corrosion. Baked-on paint, color coordinated to slats |
| Bottom Rail | Sculpted .024” Steel. Treated to resist corrosion. Baked-on paint, color coordinated to slats. |
| Slats | Aluminum Heat Treated and Tempered, 1” wide x .006 thick. |
| Valence | Double Slat with clips to mount. |
| Tilter | Shall be of worm gear construction, enclosed in housing of engineering polymer; gear and shaft shall be of engineering polymer with slip clutch mechanism. May be positioned at right or left with or without cord lock. |
| Tilt Rod | Shall be solid steel with corrosion resistant finish. |
| Tilt Wands | Shall be extruded, clear solid acrylic wand. |
| Cord Lock | Shall be of Snap-In-Design and incorporates stainless steel wear guard over which cords pass and a floating type locking pin. Locking pin shall be free of abrasive teeth and offer minimum wear to the cord. |
| Lift Cords | Shall be two-ply polyester cord filler and braided polyester jacket. |
| Braided Ladders | Shall be 100% polyester yarn color coordinated with the slats. Spacing shall not be more than 22.5 mm (approximately 13 slats per foot of drop). |
| Installation Brackets | 1 9/16” x 1 3/8” x 1 7/8” x.042 thick steel box brackets. Blinds over 48”shall have intermediate supports. |
| Tassel | Shall comply with all safety requirements |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½” deducted at the factory from width. See Product Limits. |
| Commercial Color Options | The White (M1043), Polar Bear (M1007), China Stone (M1013), Coconut (M1022), Antique Lace (M1025) |
PRODUCT LIMITS
| Controls (Manual) | Min. Width | Max. Width | Min. Drop | *Max Drop |
|---|---|---|---|---|
| Tilt-Only Center of Head Rail | 5" | 132" | 6" | 126" |
| Split Controls (L/R or R/L) | 9 1/2" | 132" | 6" | 126" |
| Same-Side Controls (L/L or R/R) | 9 1/2" | 132" | 6" | 126" |
*Maximum Sq. Footage *126 sq. ft. under warranty
Exceptions available upon request.
Custom Economy Premium (perforated Slats)
PRODUCUCT SPECIFICATIONS
| Head Rail | 1.5” x 1”x 0.024” Steel. Treated to resist corrosion. Baked-on paint, color coordinated to slats |
| Bottom Rail | Sculpted .024” Steel. Treated to resist corrosion. Baked-on paint, color coordinated to slats. |
| Perforated Slats | Aluminum Heat Treated and Tempered, 1” wide x .008 thick. |
| Valence | Double Slat with clips to mount. |
| Tilter | Shall be of worm gear construction, enclosed in housing of engineering polymer; gear and shaft shall be of engineering polymer with slip clutch mechanism. May be positioned at right or left with or without cord lock. |
| Tilt Rod | Shall be solid steel with corrosion resistant finish. |
| Tilt Wands | Shall be extruded, clear solid acrylic wand. |
| Cord Lock | Shall be of Snap-In-Design and incorporates stainless steel wear guard over which cords pass and a floating type locking pin. Locking pin shall be free of abrasive teeth and offer minimum wear to the cord. |
| Lift Cords | Shall be two-ply polyester cord filler and braided polyester jacket. |
| Braided Ladders | Shall be 100% polyester yarn color coordinated with the slats. Spacing shall not be more than 22.5 mm (approximately 13 slats per foot of drop). |
| Installation Brackets | 1 9/16” x 1 3/8” x 1 7/8” x.042 thick steel box brackets. Blinds over 48”shall have intermediate supports. |
| Tassel | Shall comply with all safety requirements |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½” deducted at the factory from width. See Product Limits. |
PRODUCT LIMITS
| Controls (Manual) | Min. Width | Max. Width | Min. Drop | *Max Drop |
|---|---|---|---|---|
| Tilt-Only Center of Head Rail | 5" | 132" | 6" | 126" |
| Split Controls (L/R or R/L) | 9 1/2" | 132" | 6" | 126" |
| Same-Side Controls (L/L or R/R) | 9 1/2" | 132" | 6" | 126" |
*Maximum Sq. Footage *126 sq. ft. under warranty
Exceptions available upon request.
Custom deluxe
PRODUCUCT SPECIFICATIONS
| Head Rail | 1” x 1.5”x .024” Steel. Treated to resist corrosion. Baked-on paint, color coordinated to slats. |
| Bottom Rail | Sculpted .024” Steel. Treated to resist corrosion. Baked-on paint, color coordinated to slats. |
| Slats | Aluminum Heat Treated and Tempered, 1” wide x .006 thick. |
| Valence | Double Slat with clips to mount. |
| Tilter | Shall be of worm gear construction, enclosed in housing of engineering polymer; gear and shaft shall be of engineering polymer with slip clutch mechanism. May be positioned at right or left with or without cord lock. |
| Tilt Rod | Shall be solid steel with corrosion resistant finish. |
| Tilt Wands | Shall be extruded, clear solid acrylic wand. |
| Cord Lock | Shall be of Snap-In-Design and incorporates stainless steel wear guard over which cords pass and a floating type locking pin. Locking pin shall be free of abrasive teeth and offer minimum wear to the cord. |
| Lift Cords | Shall be two-ply polyester cord filler and braided polyester jacket. |
| Braided Ladders | Shall be 100% polyester yarn color coordinated with the slats. Spacing shall not be more than 21.5 mm (approximately 14 slats per foot of drop). |
| Installation Brackets | 1 9/16” x 1 3/8” x 1 7/8” x.042 thick steel box brackets. Blinds over 48”shall have intermediate supports. |
| Tassel | Shall comply with all safety requirements |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½”deducted at the factory from width. See Product Limits. |
| Commercial Color Options | The White (M1043), Polar Bear (M1007), China Stone (M1013), Coconut (M1022), Antique Lace (M1025) |
PRODUCT LIMITS
| Controls (Manual) | Min. Width | Max. Width | Min. Drop | *Max Drop |
|---|---|---|---|---|
| Tilt-Only Center of Head Rail | 5" | 132" | 6" | 126" |
| Split Controls (L/R or R/L) | 9 1/2" | 132" | 6" | 126" |
| Same-Side Controls (L/L or R/R) | 9 1/2" | 132" | 6" | 126" |
*Maximum Sq. Footage *126 sq. ft. under warranty
Exceptions available upon request.
Custom Privacy
PRODUCUCT SPECIFICATIONS
| Head Rail | 1” x 1.5”x .024” Steel. Treated to resist corrosion. Baked-on paint, color coordinated to slats. |
| Bottom Rail | Sculpted .024” Steel. Treated to resist corrosion. Baked-on paint, color coordinated to slats. |
| Slats | Aluminum Heat Treated and Tempered, 1” wide x .006 thick. |
| Valence | Double Slat with clips to mount. |
| Tilter | Shall be of worm gear construction, enclosed in housing of engineering polymer; gear and shaft shall be of engineering polymer with slip clutch mechanism. May be positioned at right or left with or without cord lock. |
| Tilt Rod | Shall be solid steel with corrosion resistant finish. |
| Tilt Wands | Shall be extruded, clear solid acrylic wand. |
| Cord Lock | Shall be of Snap-In-Design and incorporates stainless steel wear guard over which cords pass and a floating type locking pin. Locking pin shall be free of abrasive teeth and offer minimum wear to the cord. |
| Lift Cords | Shall be two-ply polyester cord filler and braided polyester jacket. |
| Braided Ladders | Shall be 100% polyester yarn color coordinated with the slats. Spacing shall not be more than 21.5 mm (approximately 14 slats per foot of drop). |
| Installation Brackets | 1 9/16” x 1 3/8” x 1 7/8” x.042 thick steel box brackets. Blinds over 48”shall have intermediate supports. |
| Tassel | Shall comply with all safety requirements |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½”deducted at the factory from width. See Product Limits. |
| Commercial Color Options | The White (M1043), Polar Bear (M1007), China Stone (M1013), Coconut (M1022), Antique Lace (M1025) |
PRODUCT LIMITS
| Controls (Manual) | Min. Width | Max. Width | Min. Drop | *Max Drop |
|---|---|---|---|---|
| Tilt-Only Center of Head Rail | 5" | 132" | 6" | 126" |
| Split Controls (L/R or R/L) | 9 1/2" | 132" | 6" | 126" |
| Same-Side Controls (L/L or R/R) | 9 1/2" | 132" | 6" | 126" |
*Maximum Sq. Footage *126 sq. ft. under warranty
Exceptions available upon request.
Custom Economy Premium
PRODUCUCT SPECIFICATIONS
| Head Rail | 1” x 1.5”x .024” Steel. Treated to resist corrosion. Baked-on paint, color coordinated to slats. |
| Bottom Rail | Sculpted .024” Steel. Treated to resist corrosion. Baked-on paint, color coordinated to slats. |
| Slats | Aluminum Heat Treated and Tempered, 1” wide x .008 thick. |
| Valence | Double Slat with clips to mount. |
| Tilter | Shall be of worm gear construction, enclosed in housing of engineering polymer; gear and shaft shall be of engineering polymer with slip clutch mechanism. May be positioned at right or left with or without cord lock. |
| Tilt Rod | Shall be solid steel with corrosion resistant finish. |
| Tilt Wands | Shall be extruded, clear solid acrylic wand. |
| Cord Lock | Shall be of Snap-In-Design and incorporates stainless steel wear guard over which cords pass and a floating type locking pin. Locking pin shall be free of abrasive teeth and offer minimum wear to the cord. |
| Lift Cords | Shall be two-ply polyester cord filler and braided polyester jacket. |
| Braided Ladders | Shall be 100% polyester yarn color coordinated with the slats. Spacing shall not be more than 22.5 mm (approximately 13 slats per foot of drop). |
| Installation Brackets | 1 9/16” x 1 3/8” x 1 7/8” x.042 thick steel box brackets. Blinds over 48”shall have intermediate supports. |
| Tassel | Shall comply with all safety requirements |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½”deducted at the factory from width. See Product Limits. |
| Commercial Color Options | The White (M1043), Polar Bear (M1007), Coconut (M1022) |
PRODUCT LIMITS
| Controls (Manual) | Min. Width | Max. Width | Min. Drop | *Max Drop |
|---|---|---|---|---|
| Tilt-Only Center of Head Rail | 5" | 132" | 6" | 126" |
| Split Controls (L/R or R/L) | 9 1/2" | 132" | 6" | 126" |
| Same-Side Controls (L/L or R/R) | 9 1/2" | 132" | 6" | 126" |
*Maximum Sq. Footage *126 sq. ft. under warranty
Exceptions available upon request.
Custom Economy - No Valence
PRODUCUCT SPECIFICATIONS
| Head Rail | 1” x 1.5”x .024” Steel. Treated to resist corrosion. Baked-on paint, color coordinated to slats. |
| Bottom Rail | Sculpted .024” Steel. Treated to resist corrosion. Baked-on paint, color coordinated to slats. |
| Slats | Aluminum Heat Treated and Tempered, 1” wide x .006 thick. |
| Valence | Double Slat with clips to mount. |
| Tilter | Shall be of worm gear construction, enclosed in housing of engineering polymer; gear and shaft shall be of engineering polymer with slip clutch mechanism. May be positioned at right or left with or without cord lock. |
| Tilt Rod | Shall be solid steel with corrosion resistant finish. |
| Tilt Wands | Shall be extruded, clear solid acrylic wand. |
| Cord Lock | Shall be of Snap-In-Design and incorporates stainless steel wear guard over which cords pass and a floating type locking pin. Locking pin shall be free of abrasive teeth and offer minimum wear to the cord. |
| Lift Cords | Shall be two-ply polyester cord filler and braided polyester jacket. |
| Braided Ladders | Shall be 100% polyester yarn color coordinated with the slats. Spacing shall not be more than 22.5 mm (approximately 13 slats per foot of drop). |
| Installation Brackets | 1 9/16” x 1 3/8” x 1 7/8” x.042 thick steel box brackets. Blinds over 48”shall have intermediate supports. |
| Tassel | Shall comply with all safety requirements |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½”deducted at the factory from width. See Product Limits. |
| Commercial Color Options | The White (M1043), Polar Bear (M1007), China Stone (M1013), Coconut (M1022), Antique Lace (M1025) |
PRODUCT LIMITS
| Controls (Manual) | Min. Width | Max. Width | Min. Drop | *Max Drop |
|---|---|---|---|---|
| Tilt-Only Center of Head Rail | 5" | 132" | 6" | 126" |
| Split Controls (L/R or R/L) | 9 1/2" | 132" | 6" | 126" |
| Same-Side Controls (L/L or R/R) | 9 1/2" | 132" | 6" | 126" |
*Maximum Sq. Footage *126 sq. ft. under warranty
Exceptions available upon request.
Custom Deluxe Premium
PRODUCUCT SPECIFICATIONS
| Head Rail | 1” x 1.5”x .024” Steel. Treated to resist corrosion. Baked-on paint, color coordinated to slats. |
| Bottom Rail | Sculpted .024” Steel. Treated to resist corrosion. Baked-on paint, color coordinated to slats. |
| Slats | Aluminum Heat Treated and Tempered, 1” wide x .008 thick. |
| Valence | Double Slat with clips to mount. |
| Tilter | Shall be of worm gear construction, enclosed in housing of engineering polymer; gear and shaft shall be of engineering polymer with slip clutch mechanism. May be positioned at right or left with or without cord lock. |
| Tilt Rod | Shall be solid steel with corrosion resistant finish. |
| Tilt Wands | Shall be extruded, clear solid acrylic wand. |
| Cord Lock | Shall be of Snap-In-Design and incorporates stainless steel wear guard over which cords pass and a floating type locking pin. Locking pin shall be free of abrasive teeth and offer minimum wear to the cord. |
| Lift Cords | Shall be two-ply polyester cord filler and braided polyester jacket. |
| Braided Ladders | Shall be 100% polyester yarn color coordinated with the slats. Spacing shall not be more than 22.5 mm (approximately 13 slats per foot of drop). |
| Installation Brackets | 1 9/16” x 1 3/8” x 1 7/8” x.042 thick steel box brackets. Blinds over 48”shall have intermediate supports. |
| Tassel | Shall comply with all safety requirements |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½”deducted at the factory from width. See Product Limits. |
| Commercial Color Options | The White (M1043), Polar Bear (M1007), Coconut (M1022) |
PRODUCT LIMITS
| Controls (Manual) | Min. Width | Max. Width | Min. Drop | *Max Drop |
|---|---|---|---|---|
| Tilt-Only Center of Head Rail | 5" | 132" | 6" | 126" |
| Split Controls (L/R or R/L) | 9 1/2" | 132" | 6" | 126" |
| Same-Side Controls (L/L or R/R) | 9 1/2" | 132" | 6" | 126" |
*Maximum Sq. Footage *126 sq. ft. under warranty
Exceptions available upon request.
Custom Privacy Premium
PRODUCUCT SPECIFICATIONS
| Head Rail | 1” x 1.5”x .024” Steel. Treated to resist corrosion. Baked-on paint, color coordinated to slats. |
| Bottom Rail | Sculpted .024” Steel. Treated to resist corrosion. Baked-on paint, color coordinated to slats. |
| Slats | Aluminum Heat Treated and Tempered, 1” wide x .008 thick. |
| Valence | Double Slat with clips to mount. |
| Tilter | Shall be of worm gear construction, enclosed in housing of engineering polymer; gear and shaft shall be of engineering polymer with slip clutch mechanism. May be positioned at right or left with or without cord lock. |
| Tilt Rod | Shall be solid steel with corrosion resistant finish. |
| Tilt Wands | Shall be extruded, clear solid acrylic wand. |
| Cord Lock | Shall be of Snap-In-Design and incorporates stainless steel wear guard over which cords pass and a floating type locking pin. Locking pin shall be free of abrasive teeth and offer minimum wear to the cord. |
| Lift Cords | Shall be two-ply polyester cord filler and braided polyester jacket. |
| Braided Ladders | Shall be 100% polyester yarn color coordinated with the slats. Spacing shall not be more than 22.5 mm (approximately 17 slats per foot of drop). |
| Installation Brackets | 1 9/16” x 1 3/8” x 1 7/8” x.042 thick steel box brackets. Blinds over 48”shall have intermediate supports. |
| Tassel | Shall comply with all safety requirements |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½”deducted at the factory from width. See Product Limits. |
| Commercial Color Options | The White (M1043), Polar Bear (M1007), Coconut (M1022) |
PRODUCT LIMITS
| Controls (Manual) | Min. Width | Max. Width | Min. Drop | *Max Drop |
|---|---|---|---|---|
| Tilt-Only Center of Head Rail | 5" | 132" | 6" | 126" |
| Split Controls (L/R or R/L) | 9 1/2" | 132" | 6" | 126" |
| Same-Side Controls (L/L or R/R) | 9 1/2" | 132" | 6" | 126" |
*Maximum Sq. Footage *126 sq. ft. under warranty
Exceptions available upon request.
Motorized Wand - 1.25"x1.5" Headrail
Motorized Wand Economy
Motorized Wand Deluxe
Motorized Wand Privacy
Motorized Wand Economy Premium
Motorized Wand Deluxe Premium
Motorized Wand Privacy Premium
Motorized Wand Economy
PRODUCUCT SPECIFICATIONS
| Operation | Lift/Tilt motor, battery powered with 8 Double A batteries, Alkaline or Lithium. Optional 12V DC Plug-in Transformer. |
| Battery Box | Molded plastic, used to hold 8 Double A batteries, connected to lift/tilt motor. |
| Battery Box Cover | Molded plastic, only used when Battery Box is mounted outside of head rail. |
| Motor | 12V DC motor powered by either 8 Double AA Batteries or 12V DC transformer. |
| Head Rail | 1.75” x 1.50”x 1/16” extruded aluminum, integrated style. Baked-on paint, color coordinated to slats. |
| Bottom Rail | Sculpted, extruded aluminum. Color coordinated to slats |
| Head Rail Slat | Aluminum Heat Treated and Tempered, 1” wide x .006 thick. Color to match head rail. |
| Slats | Aluminum Heat Treated and Tempered, 1” wide x .006 thick. |
| Tilter | Shall be of worm gear construction, enclosed in housing of engineering polymer; gear and shaft shall be of engineering polymer with slip clutch mechanism. May be positioned at right or left with or without cord lock. |
| Tilt Rod | Shall be solid steel with corrosion resistant finish. |
| Braided Ladders | Shall be 100% polyester yarn color coordinated with the slats. Spacing shall not be more than 22.5 mm. (approximately 13 slats per foot of drop). |
| Installation Brackets | Standard hidden brackets, 1.5” x 1.75” x .042” Zinc Plated Steel. Blinds over 48” wide shall have intermediate supports. |
| Tassel | Shall comply with all safety requirements. |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½” deducted at the factory from width. See Product Limits. |
| Commercial Color Options | The White (M1043), Polar Bear (M1007), China Stone (M1013), Coconut (M1022), Antique Lace (M1025) |
PRODUCT LIMITS
| Controls (Motorized) | Min. Width | Max. Width | Min. Drop | *Max Drop |
|---|---|---|---|---|
| Lift/Tilt Left or Right | 20" | 102" | 6" | 114" |
*Maximum Sq. Footage *114 sq. ft. under warranty
Exceptions available upon request.
Motorized Wand Deluxe
PRODUCUCT SPECIFICATIONS
| Operation | Lift/Tilt motor, battery powered with 8 Double A batteries, Alkaline or Lithium. Optional 12V DC Plug-in Transformer. |
| Battery Box | Molded plastic, used to hold 8 Double A batteries, connected to lift/tilt motor. |
| Battery Box Cover | Molded plastic, only used when Battery Box is mounted outside of head rail. |
| Motor | 12V DC motor powered by either 8 Double AA Batteries or 12V DC transformer. |
| Head Rail | 1.75” x 1.50”x 1/16” extruded aluminum, integrated style. Baked-on paint, color coordinated to slats. |
| Bottom Rail | Sculpted, extruded aluminum. Color coordinated to slats |
| Head Rail Slat | Aluminum Heat Treated and Tempered, 1” wide x .006 thick. Color to match head rail. |
| Slats | Aluminum Heat Treated and Tempered, 1” wide x .006 thick. |
| Tilter | Shall be of worm gear construction, enclosed in housing of engineering polymer; gear and shaft shall be of engineering polymer with slip clutch mechanism. May be positioned at right or left with or without cord lock. |
| Tilt Rod | Shall be solid steel with corrosion resistant finish. |
| Braided Ladders | Shall be 100% polyester yarn color coordinated with the slats. Spacing shall not be more than 21.5 mm. (approximately 14 slats per foot of drop). |
| Installation Brackets | Standard hidden brackets, 1.5” x 1.75” x .042” Zinc Plated Steel. Blinds over 48” wide shall have intermediate supports. |
| Tassel | Shall comply with all safety requirements. |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½” deducted at the factory from width. See Product Limits. |
| Commercial Color Options | The White (M1043), Polar Bear (M1007), China Stone (M1013), Coconut (M1022), Antique Lace (M1025) |
PRODUCT LIMITS
| Controls (Motorized) | Min. Width | Max. Width | Min. Drop | *Max Drop |
|---|---|---|---|---|
| Lift/Tilt Left or Right | 20" | 102" | 6" | 114" |
*Maximum Sq. Footage *114 sq. ft. under warranty
Exceptions available upon request.
Motorized Wand Privacy
PRODUCUCT SPECIFICATIONS
| Operation | Lift/Tilt motor, battery powered with 8 Double A batteries, Alkaline or Lithium. Optional 12V DC Plug-in Transformer. |
| Battery Box | Molded plastic, used to hold 8 Double A batteries, connected to lift/tilt motor. |
| Battery Box Cover | Molded plastic, only used when Battery Box is mounted outside of head rail. |
| Motor | 12V DC motor powered by either 8 Double AA Batteries or 12V DC transformer. |
| Head Rail | 1.75” x 1.50”x 1/16” extruded aluminum, integrated style. Baked-on paint, color coordinated to slats. |
| Bottom Rail | Sculpted, extruded aluminum. Color coordinated to slats |
| Head Rail Slat | Aluminum Heat Treated and Tempered, 1” wide x .006 thick. Color to match head rail. |
| Slats | Aluminum Heat Treated and Tempered, 1” wide x .006 thick. |
| Tilter | Shall be of worm gear construction, enclosed in housing of engineering polymer; gear and shaft shall be of engineering polymer with slip clutch mechanism. May be positioned at right or left with or without cord lock. |
| Tilt Rod | Shall be solid steel with corrosion resistant finish. |
| Braided Ladders | Shall be 100% polyester yarn color coordinated with the slats. Spacing shall not be more than 18.5 mm. (approximately 17 slats per foot of drop). |
| Installation Brackets | Standard hidden brackets, 1.5” x 1.75” x .042” Zinc Plated Steel. Blinds over 48” wide shall have intermediate supports. |
| Tassel | Shall comply with all safety requirements. |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½” deducted at the factory from width. See Product Limits. |
| Commercial Color Options | The White (M1043), Polar Bear (M1007), China Stone (M1013), Coconut (M1022), Antique Lace (M1025) |
PRODUCT LIMITS
| Controls (Motorized) | Min. Width | Max. Width | Min. Drop | *Max Drop |
|---|---|---|---|---|
| Lift/Tilt Left or Right | 20" | 102" | 6" | 114" |
*Maximum Sq. Footage *114 sq. ft. under warranty
Exceptions available upon request.
Motorized Wand Economy Premium
PRODUCUCT SPECIFICATIONS
| Operation | Lift/Tilt motor, battery powered with 8 Double A batteries, Alkaline or Lithium. Optional 12V DC Plug-in Transformer. |
| Battery Box | Molded plastic, used to hold 8 Double A batteries, connected to lift/tilt motor. |
| Battery Box Cover | Molded Plastic, only used when Battery Box is mounted outside of head rail. |
| Motor | 12V DC motor powered by either 8 Double AA Batteries or 12V DC transformer. |
| Head Rail | 1.75” x 1.50”x 1/16” extruded aluminum, integrated style. Baked-on paint, color coordinated to slats. |
| Bottom Rail | Sculpted, extruded aluminum. Color coordinated to slats |
| Head Rail Slat | Aluminum Heat Treated and Tempered, 1” wide x .008 thick. Color to match head rail. |
| Slats | Aluminum Heat Treated and Tempered, 1” wide x .008 thick. |
| Tilter | Shall be of worm gear construction, enclosed in housing of engineering polymer; gear and shaft shall be of engineering polymer with slip clutch mechanism. May be positioned at right or left with or without cord lock. |
| Tilt Rod | Shall be solid steel with corrosion resistant finish. |
| Braided Ladders | Shall be 100% polyester yarn color coordinated with the slats. Spacing shall not be more than 22.5 mm. (approximately 13 slats per foot of drop). |
| Installation Brackets | Standard hidden brackets, 1.5” x 1.75” x .042” Zinc Plated Steel. Blinds over 48” wide shall have intermediate supports. |
| Tassel | Shall comply with all safety requirements. |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½” deducted at the factory from width. See Product Limits. |
| Commercial Color Options | The White (M1043), Polar Bear (M1007), China Stone (M1013), Coconut (M1022), Antique Lace (M1025) |
PRODUCT LIMITS
| Controls (Motorized) | Min. Width | Max. Width | Min. Drop | *Max Drop |
|---|---|---|---|---|
| Lift/Tilt Left or Right | 20" | 102" | 6" | 114" |
*Maximum Sq. Footage *114 sq. ft. under warranty
Exceptions available upon request.
Motorized Wand Deluxe Premium
PRODUCUCT SPECIFICATIONS
| Operation | Lift/Tilt motor, battery powered with 8 Double A batteries, Alkaline or Lithium. Optional 12V DC Plug-in Transformer. |
| Battery Box | Molded plastic, used to hold 8 Double A batteries, connected to lift/tilt motor. |
| Battery Box Cover | Molded plastic, only used when Battery Box is mounted outside of head rail. |
| Motor | 12V DC motor powered by either 8 Double AA Batteries or 12V DC transformer. |
| Head Rail | 1.75” x 1.50”x 1/16” extruded aluminum, integrated style. Baked-on paint, color coordinated to slats. |
| Bottom Rail | Sculpted, extruded aluminum. Color coordinated to slats |
| Head Rail Slat | Aluminum Heat Treated and Tempered, 1” wide x .008 thick. Color to match head rail. |
| Slats | Aluminum Heat Treated and Tempered, 1” wide x .008 thick. |
| Tilter | Shall be of worm gear construction, enclosed in housing of engineering polymer; gear and shaft shall be of engineering polymer with slip clutch mechanism. May be positioned at right or left with or without cord lock. |
| Tilt Rod | Shall be solid steel with corrosion resistant finish. |
| Braided Ladders | Shall be 100% polyester yarn color coordinated with the slats. Spacing shall not be more than 21.5 mm. (approximately 14 slats per foot of drop). |
| Installation Brackets | Standard hidden brackets, 1.5” x 1.75” x .042” Zinc Plated Steel. Blinds over 48” wide shall have intermediate supports. |
| Tassel | Shall comply with all safety requirements. |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½” deducted at the factory from width. See Product Limits. |
| Commercial Color Options | The White (M1043), Polar Bear (M1007), China Stone (M1013), Coconut (M1022), Antique Lace (M1025) |
PRODUCT LIMITS
| Controls (Motorized) | Min. Width | Max. Width | Min. Drop | *Max Drop |
|---|---|---|---|---|
| Lift/Tilt Left or Right | 20" | 102" | 6" | 114" |
*Maximum Sq. Footage *114 sq. ft. under warranty
Exceptions available upon request.
Motorized Wand Privacy Premium
PRODUCUCT SPECIFICATIONS
| Operation | Lift/Tilt motor, battery powered with 8 Double A batteries, Alkaline or Lithium. Optional 12V DC Plug-in Transformer. |
| Battery Box | Molded plastic, used to hold 8 Double A batteries, connected to lift/tilt motor. |
| Battery Box Cover | Molded plastic, only used when Battery Box is mounted outside of head rail. |
| Motor | 12V DC motor powered by either 8 Double AA Batteries or 12V DC transformer. |
| Head Rail | 1.75” x 1.50”x 1/16” extruded aluminum, integrated style. Baked-on paint, color coordinated to slats. |
| Bottom Rail | Sculpted, extruded aluminum. Color coordinated to slats |
| Head Rail Slat | Aluminum Heat Treated and Tempered, 1” wide x .008 thick. Color to match head rail. |
| Slats | Aluminum Heat Treated and Tempered, 1” wide x .008 thick. |
| Tilter | Shall be of worm gear construction, enclosed in housing of engineering polymer; gear and shaft shall be of engineering polymer with slip clutch mechanism. May be positioned at right or left with or without cord lock. |
| Tilt Rod | Shall be solid steel with corrosion resistant finish. |
| Braided Ladders | Shall be 100% polyester yarn color coordinated with the slats. Spacing shall not be more than 18.5 mm. (approximately 17 slats per foot of drop). |
| Installation Brackets | Standard hidden brackets, 1.5” x 1.75” x .042” Zinc Plated Steel. Blinds over 48” wide shall have intermediate supports. |
| Tassel | Shall comply with all safety requirements. |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½” deducted at the factory from width. See Product Limits. |
| Commercial Color Options | The White (M1043), Polar Bear (M1007), China Stone (M1013), Coconut (M1022), Antique Lace (M1025) |
PRODUCT LIMITS
| Controls (Motorized) | Min. Width | Max. Width | Min. Drop | *Max Drop |
|---|---|---|---|---|
| Lift/Tilt Left or Right | 20" | 102" | 6" | 114" |
*Maximum Sq. Footage *114 sq. ft. under warranty
Exceptions available upon request.
1" Horizontals Cordless Aluminum - 1.75"x1.5" Headrail
Cordless Deluxe
Cordless Economy
Cordless Privacy
Cordless Deluxe Premium
Cordless Economy Premium
Cordless Privacy Premium
Cordless Deluxe
PRODUCUCT SPECIFICATIONS
| Head Rail | 1.75” x 1.50”x 1/16” extruded aluminum, integrated style. Baked-on paint, color coordinated to slats. |
| Bottom Rail | Sculpted, extruded aluminum. Color coordinated to slats. |
| Head Rail Slat | Aluminum Heat Treated and Tempered, 1” wide x .006 thick. Color to match head rail. |
| Slats | Aluminum Heat Treated and Tempered, 1” wide x .006 thick. |
| Tilter | Shall be of worm gear construction, enclosed in housing of engineering polymer; gear and shaft shall be of engineering polymer with slip clutch mechanism. May be positioned at right or left with or with-out cord lock. |
| Tilt Rod | Shall be solid steel with corrosion resistant finish. |
| Tilt Wand | Shall be extruded, clear solid acrylic wand. |
| Cord Lock | Shall be of Snap-In-Design and incorporates stainless steel wear guard over which cords pass and a floating type locking pin. Locking pin shall be free of abrasive teeth and offer minimum wear to the cord. |
| Lift Cords | Shall be two-ply polyester cord filler and braided polyester jacket. |
| Braided Ladders | Shall be 100% polyester yarn color coordinated with the slats. Spacing shall not be more than 22.5 mm. (approximately 13 slats per foot of drop). |
| Installation Brackets | Standard hidden brackets, 1.5” x 1.75” x .042” Zinc Plated Steel. Blinds over 48” wide shall have inter-mediate supports. |
| Tassel | Shall comply with all safety requirements. |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½” deducted at the factory from width. See Product Limits. |
PRODUCT LIMITS
| Controls (Manual) | Min. Width | Max. Width | Min. Drop | *Max Drop |
|---|---|---|---|---|
| Tilt Only | 10" | 96" | 6" | 82" |
*Maximum Sq. Footage *54 sq. ft. under warranty
Exceptions available upon request.
Cordless Economy
PRODUCUCT SPECIFICATIONS
| Head Rail | 1.75” x 1.50”x 1/16” extruded aluminum, integrated style. Baked-on paint, color coordinated to slats. |
| Bottom Rail | Sculpted, extruded aluminum. Color coordinated to slats. |
| Head Rail Slat | Aluminum Heat Treated and Tempered, 1” wide x .006 thick. Color to match head rail. |
| Slats | Aluminum Heat Treated and Tempered, 1” wide x .006 thick. |
| Tilter | Shall be of worm gear construction, enclosed in housing of engineering polymer; gear and shaft shall be of engineering polymer with slip clutch mechanism. May be positioned at right or left with or with-out cord lock. |
| Tilt Rod | Shall be solid steel with corrosion resistant finish. |
| Tilt Wand | Shall be extruded, clear solid acrylic wand. |
| Cord Lock | Shall be of Snap-In-Design and incorporates stainless steel wear guard over which cords pass and a floating type locking pin. Locking pin shall be free of abrasive teeth and offer minimum wear to the cord. |
| Lift Cords | Shall be two-ply polyester cord filler and braided polyester jacket. |
| Braided Ladders | Shall be 100% polyester yarn color coordinated with the slats. Spacing shall not be more than 22.5 mm. (approximately 13 slats per foot of drop). |
| Installation Brackets | Standard hidden brackets, 1.5” x 1.75” x .042” Zinc Plated Steel. Blinds over 48” wide shall have inter-mediate supports. |
| Tassel | Shall comply with all safety requirements. |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½” deducted at the factory from width. See Product Limits. |
PRODUCT LIMITS
| Controls (Manual) | Min. Width | Max. Width | Min. Drop | *Max Drop |
|---|---|---|---|---|
| Tilt Only | 10" | 96" | 6" | 82" |
*Maximum Sq. Footage *54 sq. ft. under warranty
Exceptions available upon request.
Cordless Privacy
PRODUCUCT SPECIFICATIONS
| Head Rail | 1.75” x 1.50”x 1/16” extruded aluminum, integrated style. Baked-on paint, color coordinated to slats. |
| Bottom Rail | Sculpted, extruded aluminum. Color coordinated to slats. |
| Head Rail Slat | Aluminum Heat Treated and Tempered, 1” wide x .006 thick. Color to match head rail. |
| Slats | Aluminum Heat Treated and Tempered, 1” wide x .006 thick. |
| Tilter | Shall be of worm gear construction, enclosed in housing of engineering polymer; gear and shaft shall be of engineering polymer with slip clutch mechanism. May be positioned at right or left with or with-out cord lock. |
| Tilt Rod | Shall be solid steel with corrosion resistant finish. |
| Tilt Wand | Shall be extruded, clear solid acrylic wand. |
| Cord Lock | Shall be of Snap-In-Design and incorporates stainless steel wear guard over which cords pass and a floating type locking pin. Locking pin shall be free of abrasive teeth and offer minimum wear to the cord. |
| Lift Cords | Shall be two-ply polyester cord filler and braided polyester jacket. |
| Braided Ladders | Shall be 100% polyester yarn color coordinated with the slats. Spacing shall not be more than 21.5 mm. (approximately 14 slats per foot of drop). |
| Installation Brackets | Standard hidden brackets, 1.5” x 1.75” x .042” Zinc Plated Steel. Blinds over 48” wide shall have inter-mediate supports. |
| Tassel | Shall comply with all safety requirements. |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½” deducted at the factory from width. See Product Limits. |
PRODUCT LIMITS
| Controls (Manual) | Min. Width | Max. Width | Min. Drop | *Max Drop |
|---|---|---|---|---|
| Tilt Only | 10" | 96" | 6" | 82" |
*Maximum Sq. Footage *54 sq. ft. under warranty
Exceptions available upon request.
Cordless Deluxe Premium
PRODUCUCT SPECIFICATIONS
| Head Rail | 1.75” x 1.50”x 1/16” extruded aluminum, integrated style. Baked-on paint, color coordinated to slats. |
| Bottom Rail | Sculpted, extruded aluminum. Color coordinated to slats. |
| Head Rail Slat | Aluminum Heat Treated and Tempered, 1” wide x .008 thick. Color to match head rail. |
| Slats | Aluminum Heat Treated and Tempered, 1” wide x .008 thick. |
| Tilter | Shall be of worm gear construction, enclosed in housing of engineering polymer; gear and shaft shall be of engineering polymer with slip clutch mechanism. May be positioned at right or left with or with-out cord lock. |
| Tilt Rod | Shall be solid steel with corrosion resistant finish. |
| Tilt Wand | Shall be extruded, clear solid acrylic wand. |
| Cord Lock | Shall be of Snap-In-Design and incorporates stainless steel wear guard over which cords pass and a floating type locking pin. Locking pin shall be free of abrasive teeth and offer minimum wear to the cord. |
| Lift Cords | Shall be two-ply polyester cord filler and braided polyester jacket. |
| Braided Ladders | Shall be 100% polyester yarn color coordinated with the slats. Spacing shall not be more than 22.5 mm. (approximately 13 slats per foot of drop). |
| Installation Brackets | Standard hidden brackets, 1.5” x 1.75” x .042” Zinc Plated Steel. Blinds over 48” wide shall have inter-mediate supports. |
| Tassel | Shall comply with all safety requirements. |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½” deducted at the factory from width. See Product Limits. |
PRODUCT LIMITS
| Controls (Manual) | Min. Width | Max. Width | Min. Drop | *Max Drop |
|---|---|---|---|---|
| Tilt Only | 10" | 96" | 6" | 82" |
*Maximum Sq. Footage *114 sq. ft. under warranty
Exceptions available upon request.
Cordless economy premium
PRODUCUCT SPECIFICATIONS
| Head Rail | 1.75” x 1.50”x 1/16” extruded aluminum, integrated style. Baked-on paint, color coordinated to slats. |
| Bottom Rail | Sculpted, extruded aluminum. Color coordinated to slats. |
| Head Rail Slat | Aluminum Heat Treated and Tempered, 1” wide x .008 thick. Color to match head rail. |
| Slats | Aluminum Heat Treated and Tempered, 1” wide x .008 thick. |
| Tilter | Shall be of worm gear construction, enclosed in housing of engineering polymer; gear and shaft shall be of engineering polymer with slip clutch mechanism. May be positioned at right or left with or with-out cord lock. |
| Tilt Rod | Shall be solid steel with corrosion resistant finish. |
| Tilt Wand | Shall be extruded, clear solid acrylic wand. |
| Cord Lock | Shall be of Snap-In-Design and incorporates stainless steel wear guard over which cords pass and a floating type locking pin. Locking pin shall be free of abrasive teeth and offer minimum wear to the cord. |
| Lift Cords | Shall be two-ply polyester cord filler and braided polyester jacket. |
| Braided Ladders | Shall be 100% polyester yarn color coordinated with the slats. Spacing shall not be more than 22.5 mm. (approximately 13 slats per foot of drop). |
| Installation Brackets | Standard hidden brackets, 1.5” x 1.75” x .042” Zinc Plated Steel. Blinds over 48” wide shall have inter-mediate supports. |
| Tassel | Shall comply with all safety requirements. |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½” deducted at the factory from width. See Product Limits. |
PRODUCT LIMITS
| Controls (Manual) | Min. Width | Max. Width | Min. Drop | *Max Drop |
|---|---|---|---|---|
| Tilt Only | 10" | 96" | 6" | 82" |
*Maximum Sq. Footage *54 sq. ft. under warranty
Exceptions available upon request.
cordless privacy premium
PRODUCUCT SPECIFICATIONS
| Head Rail | 1.75” x 1.50”x 1/16” extruded aluminum, integrated style. Baked-on paint, color coordinated to slats. |
| Bottom Rail | Sculpted, extruded aluminum. Color coordinated to slats. |
| Head Rail Slat | Aluminum Heat Treated and Tempered, 1” wide x .008 thick. Color to match head rail. |
| Slats | Aluminum Heat Treated and Tempered, 1” wide x .008 thick. |
| Tilter | Shall be of worm gear construction, enclosed in housing of engineering polymer; gear and shaft shall be of engineering polymer with slip clutch mechanism. May be positioned at right or left with or with-out cord lock. |
| Tilt Rod | Shall be solid steel with corrosion resistant finish. |
| Tilt Wand | Shall be extruded, clear solid acrylic wand. |
| Cord Lock | Shall be of Snap-In-Design and incorporates stainless steel wear guard over which cords pass and a floating type locking pin. Locking pin shall be free of abrasive teeth and offer minimum wear to the cord. |
| Lift Cords | Shall be two-ply polyester cord filler and braided polyester jacket. |
| Braided Ladders | Shall be 100% polyester yarn color coordinated with the slats. Spacing shall not be more than 18.5 mm. (approximately 17 slats per foot of drop). |
| Installation Brackets | Standard hidden brackets, 1.5” x 1.75” x .042” Zinc Plated Steel. Blinds over 48” wide shall have inter-mediate supports. |
| Tassel | Shall comply with all safety requirements. |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½” deducted at the factory from width. See Product Limits. |
PRODUCT LIMITS
| Controls (Manual) | Min. Width | Max. Width | Min. Drop | *Max Drop |
|---|---|---|---|---|
| Tilt Only | 10" | 96" | 6" | 82" |
*Maximum Sq. Footage *54 sq. ft. under warranty
Exceptions available upon request.
