VERTICALS
LOCALLY SoURCED. AMERICAN MADE.
Vertical blinds are perfect for large windows and slider doors, and provide affordable light control. Each vertical will be cut to the designated custom size requested. There are multiple selections on material including Olympic Ridge Faux Wood and other custom PVC designs.

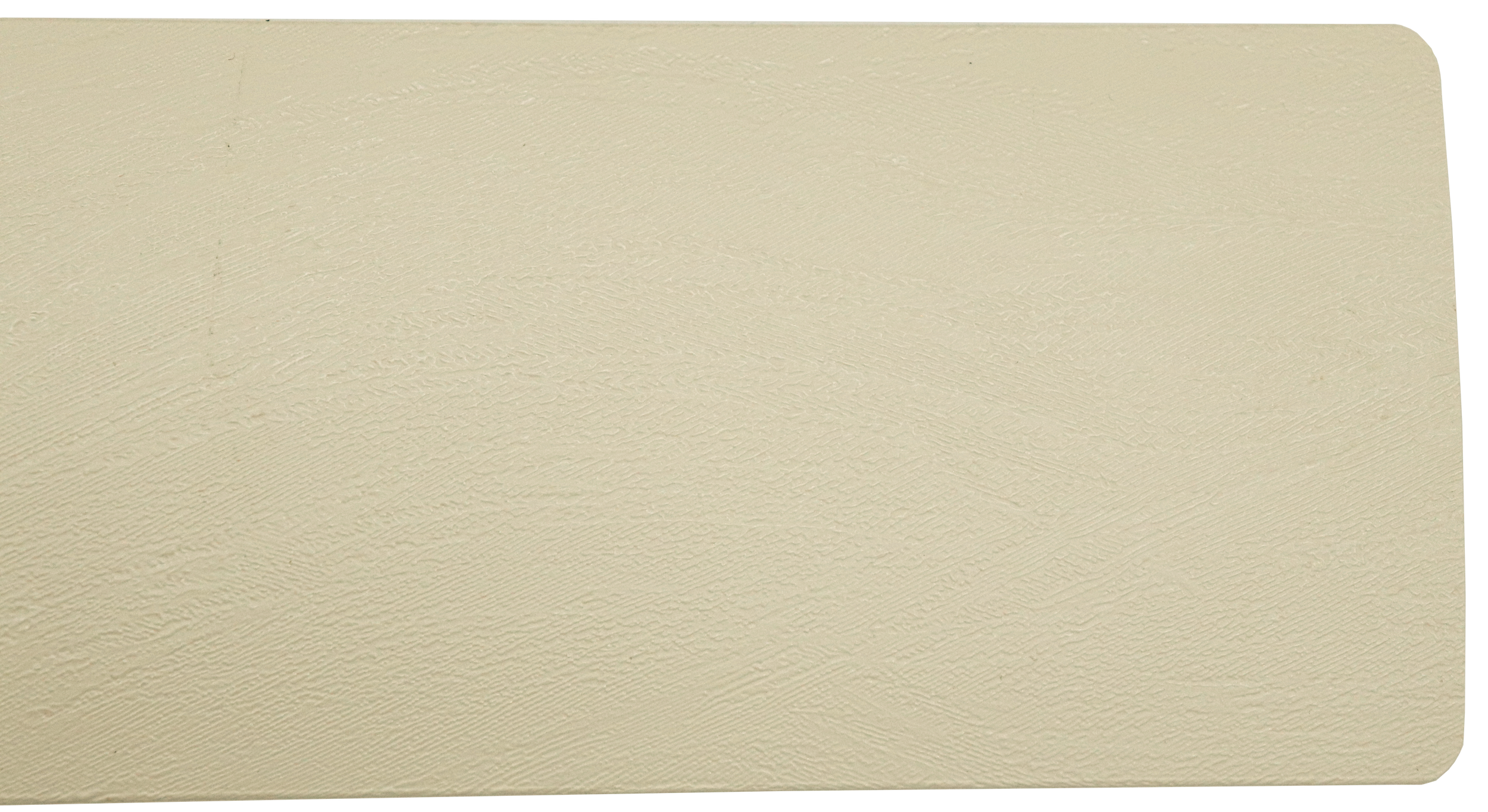

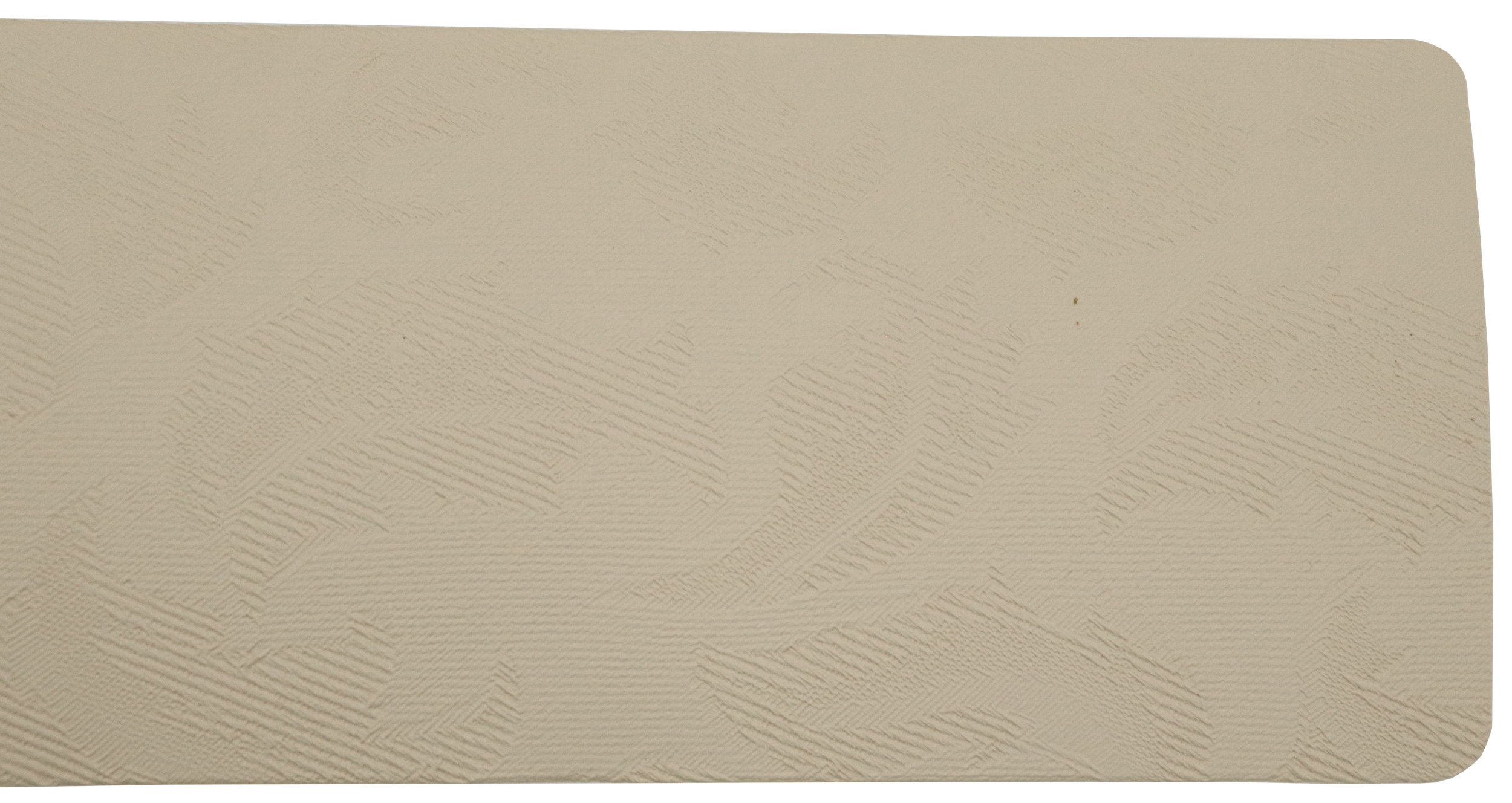

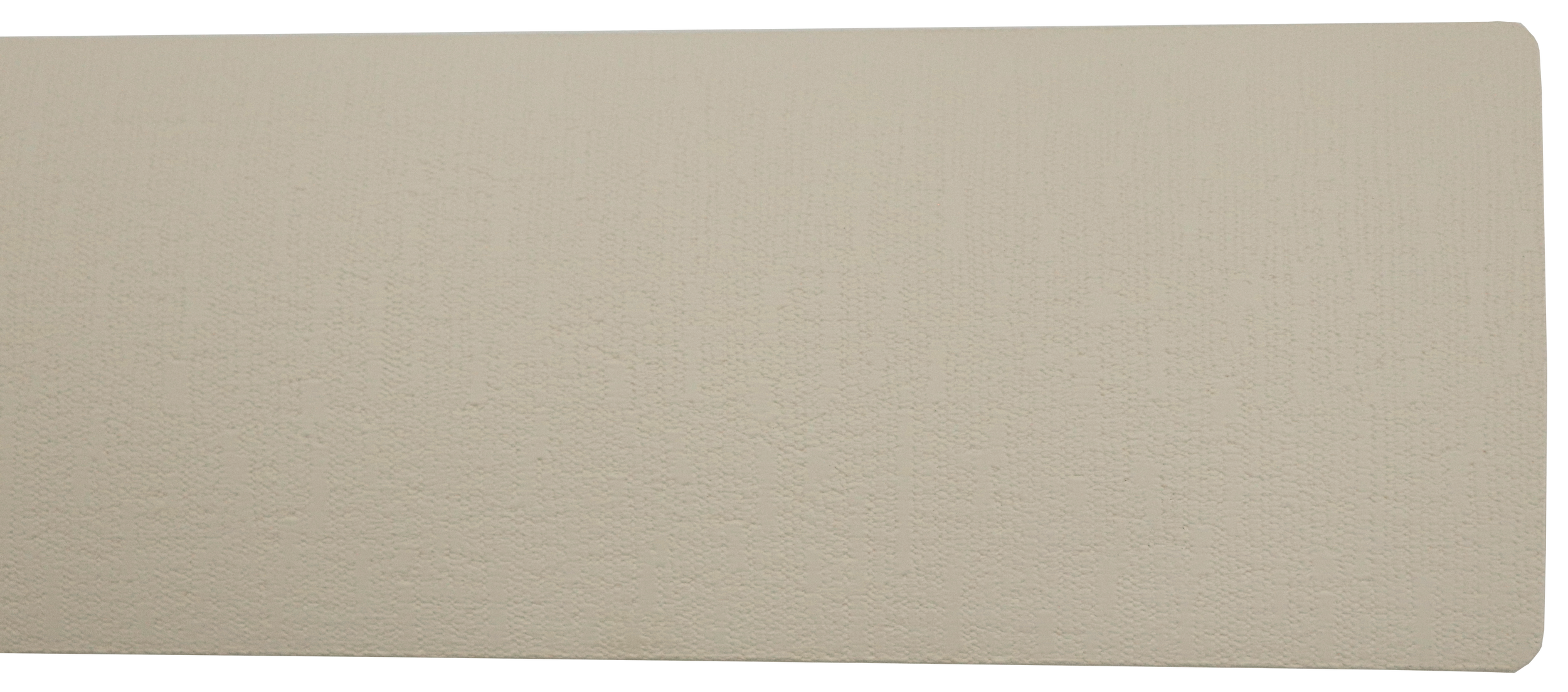

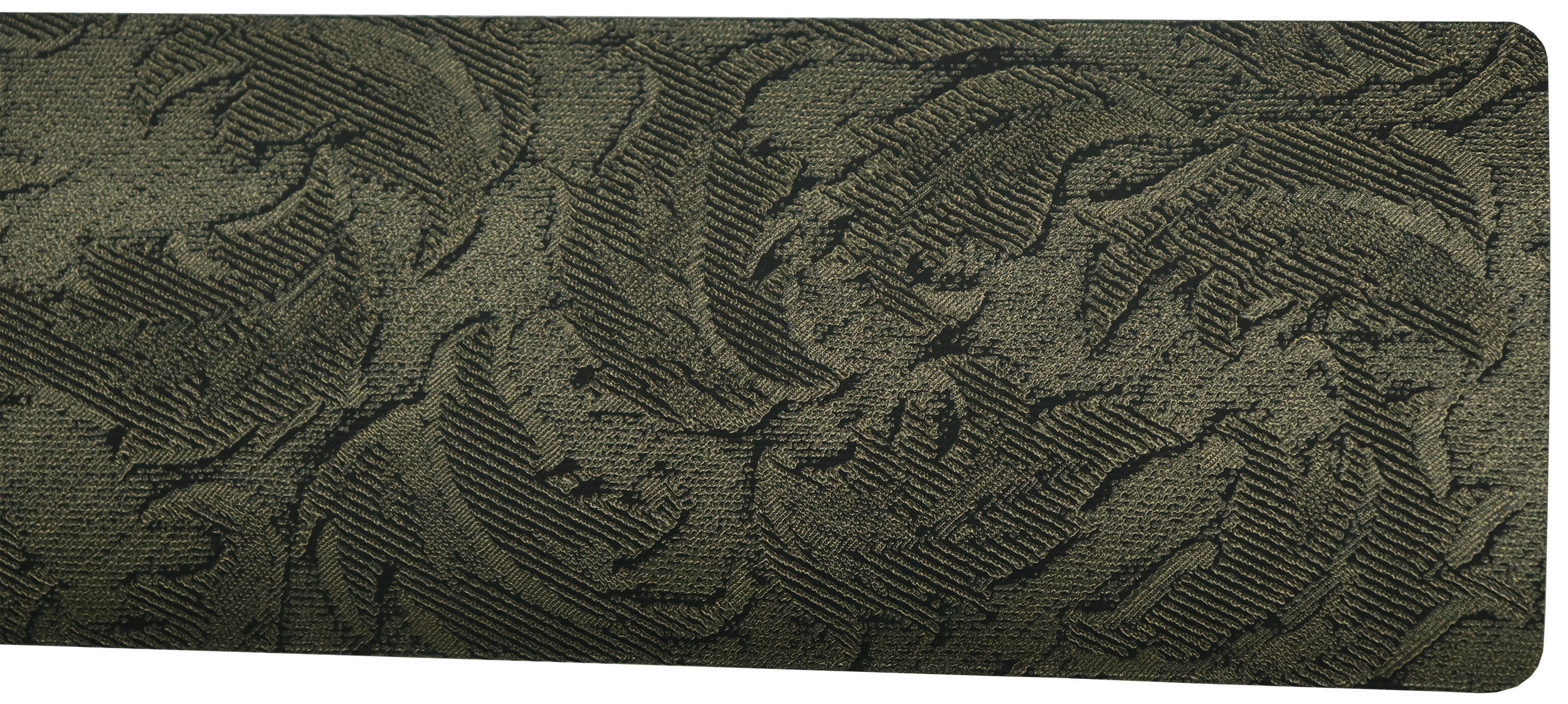

Vertical Colors
*All colors represented on-screen or in print may not be true to product coloring and can be different than the actual product. If you are concerned about product color, please feel free to order a sample swatch with customer service.
3.5” 1500 pvc vanes 2017
PRODUCT SPECIFICATIONS
Curved Vanes | 3.50” ± 1/16 louver width; 0.024” ± 0.002” louver thickness, Foam composite. |
Traversing | Vertical blinds shall traverse on self-lubricating wheels to reduce draw force, via use of 2.0 mm polyester cord to travel the entire length of the head rail. |
Valance (Optional) | Standard, with Dust Cover, Executive, 5” returns for outside mount, 3” returns for inside mount. |
Rotation | A #10 nickel-plated steel bead chain loop 180° rotation to each vane stem simultaneously through a gear system in the control housing by turning tilt rod actuating a plastic worm and spur gear assembly in each vane carrier. System shall keep louvers fixed until reset by controls. |
Head Rail | Headrail channel shall be of anodized aluminum alloy 1¾” wide x 1¼” high x .040” minimum wall thickness. The headrail will extend the width of the blind. The channel is available in baked enamel white. |
End Controls | Each headrail channel shall be equipped with end control housings made of high quality plastic. End controls shall be covered to enclose sprockets and rotation rod ends. End controls shall have rollers or traverse cord to allow extended cord life and ease of operation. |
Carriers | Each carrier is made of high quality plastic made by DuPont or equivalent. It features an independent selfaligning clutch mechanism in each louver carrier, allowing less friction for self alignment. The shaft walls of the carrier are made of reinforced plastic for strength. The vane stem is made of clear plastic and shall be centered, allowing the track to be reversible. Louvers shall rotate 180° by a 4 prong pinion rod. |
Spacing | Heavy duty self-lubricating plastic link system. Normal spacing is a minimum of 3/8” less than louver width. |
Installation Brackets | Inside or outside snap-in brackets. Intermediate brackets spaced no wider than 36” apart. |
Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted window coverings will have ½” deducted at the factory from width. See Product Limits. |
Commercial Contract Color Options | Brite White (V4901), Off White (V4902), Ivory (V4903) |
PRODUCT LIMITS
Controls (Manual) | Min. Width | Max. Width | Min. Drop | *Max. Drop |
---|---|---|---|---|
One Way Stack Left | 9" | 192" | 10" | 144" |
One War Stack Right | 9" | 192" | 10" | 144" |
Center Open | 12" | 192" | 10" | 144" |
*Maximum Sq. Footage *192 sq. ft. under warranty
Exceptions available upon request
3.5” 1600 Faux wood vanes 2017
PRODUCT SPECIFICATIONS
Curved Vanes | 3.50” ± 1/16 louver width; 0.024” ± 0.002” louver thickness, Foam composite. |
Traversing | Blinds shall traverse on self-lubricating wheels to reduce draw force. Blinds shall traverse by means of a wand control. |
Valance (Optional) | Standard, with dust Cover, Executive, 5” returns for outside mount, 3” returns for inside mount. |
Tilt Rod | Extruded aluminum, 4 prong with diameter of 0.235” |
Rotation | Wand control provides 180° rotation to each vane stem simultaneously through a gear system in the control housing by turning tilt rod actuating a plastic worm and spur gear assembly in each vane carrier. System shall keep louvers fixed until reset by controls. |
Head Rail | Headrail channel shall be of anodized aluminum alloy 1¾” wide x 1¼” high x .040” minimum wall thickness. The headrail will extend the width of the blind. The channel is available in baked enamel white. |
End Controls | Each headrail channel shall be equipped with end control housings made of high quality plastic. End controls shall be covered to enclose sprockets and rotation rod ends. |
Carriers | Each carrier is made of high quality plastic made by DuPont or equivalent. It features an independent self-aligning clutch mechanism in each louver carrier, allowing less friction for self alignment. The shaft walls of the carrier are made of reinforced plastic for strength. The vane stem is made of clear plastic and shall be centered, allowing the track to be reversible. Louvers shall rotate 180° by a 4 prong pinion rod. |
Spacing | Heavy duty self-lubricating plastic link system. Normal spacing is a minimum of 3/8” less than louver width. |
Installation Brackets | Inside or outside snap-in brackets. Intermediate brackets spaced no wider than 36” apart. |
Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted window coverings will have ½” deducted at the factory from width. See Product Limits. |
PRODUCT LIMITS
Controls (Manual) | Min. Width | Max. Width | Min. Drop | *Max. Drop |
---|---|---|---|---|
One Way Stack Left, One War Stack Right, Center Open | 12" | 120" | 10" | 144" |
*Maximum Sq. Footage *192 sq. ft. under warranty
Exceptions available upon request
3.5” 1600 pvc vanes 2017
PRODUCT SPECIFICATIONS
Curved Vanes | 3.50” ± 1/16 louver width; 0.024” ± 0.002” louver thickness, PVC. |
Traversing | Blinds shall traverse on self-lubricating wheels to reduce draw force. Blinds shall traverse by means of a wand control. |
Valance (Optional) | Standard, with dust Cover, Executive, 5” returns for outside mount, 3” returns for inside mount. |
Tilt Rod | Extruded aluminum, 4 prong with diameter of 0.235” |
Rotation | Wand control provides 180° rotation to each vane stem simultaneously through a gear system in the control housing by turning tilt rod actuating a plastic worm and spur gear assembly in each vane carrier. System shall keep louvers fixed until reset by controls. |
Head Rail | Headrail channel shall be of anodized aluminum alloy 1¾” wide x 1¼” high x .040” minimum wall thickness. The headrail will extend the width of the blind. The channel is available in baked enamel white. |
End Controls | Each headrail channel shall be equipped with end control housings made of high quality plastic. End controls shall be covered to enclose sprockets and rotation rod ends. |
Carriers | Each carrier is made of high quality plastic made by DuPont or equivalent. It features an independent self-aligning clutch mechanism in each louver carrier, allowing less friction for self alignment. The shaft walls of the carrier are made of reinforced plastic for strength. The vane stem is made of clear plastic and shall be centered, allowing the track to be reversible. Louvers shall rotate 180° by a 4 prong pinion rod. |
Spacing | Heavy duty self-lubricating plastic link system. Normal spacing is a minimum of 3/8” less than louver width. |
Installation Brackets | Inside or outside snap-in brackets. Intermediate brackets spaced no wider than 36” apart. |
Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted window coverings will have ½” deducted at the factory from width. See Product Limits. |
Commercial Contract Color Options | Brite White (V4901), Off White (V4902), Ivory (V4903) |
PRODUCT LIMITS
Controls (Manual) | Min. Width | Max. Width | Min. Drop | *Max. Drop |
---|---|---|---|---|
One Way Stack Left, One War Stack Right, Center Open | 12" | 120" | 10" | 144" |
*Maximum Sq. Footage *192 sq. ft. under warranty
Exceptions available upon request
3.5” 1500 Faux Wood vanes 2017
PRODUCT SPECIFICATIONS
Curved Vanes | 3.50” ± 1/16 louver width; 0.024” ± 0.002” louver thickness, PVC. |
Traversing | Vertical blinds shall traverse on self-lubricating wheels to reduce draw force, via use of 2.0 mm polyester cord to travel the entire length of the head rail. |
Valance (Optional) | Standard, with dust Cover, Executive, 5” returns for outside mount, 3” returns for inside mount. |
Rotation | A #10 nickel-plated steel bead chain loop 180° rotation to each vane stem simultaneously through a gear system in the control housing by turning tilt rod actuating a plastic worm and spur gear assembly in each vane carrier. System shall keep louvers fixed until reset by controls |
Head Rail | Headrail channel shall be of anodized aluminum alloy 1¾” wide x 1¼” high x .040” minimum wall thickness. The headrail will extend the width of the blind. The channel is available in baked enamel white. |
End Controls | Each headrail channel shall be equipped with end control housings made of high quality plastic. End controls shall be covered to enclose sprockets and rotation rod ends. End controls shall have rollers or traverse cord to allow extended cord life and ease of operation. |
Carriers | Each carrier is made of high quality plastic made by DuPont or equivalent. It features an independent selfaligning clutch mechanism in each louver carrier, allowing less friction for self alignment. The shaft walls of the carrier are made of reinforced plastic for strength. The vane stem is made of clear plastic and shall be centered, allowing the track to be reversible. Louvers shall rotate 180° by a 4 prong pinion rod |
Spacing | Heavy duty self-lubricating plastic link system. Normal spacing is a minimum of 3/8” less than louver width. |
Installation Brackets | Inside or outside snap-in brackets. Intermediate brackets spaced no wider than 36” apart. |
Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted window coverings will have ½” deducted at the factory from width. See Product Limits. |
PRODUCT LIMITS
Controls (Manual) | Min. Width | Max. Width | Min. Drop | *Max. Drop |
---|---|---|---|---|
One Way Stack Left | 9" | 192" | 10" | 144" |
One War Stack Right | 9" | 192" | 10" | 144" |
Center Open | 12" | 192" | 10" | 144" |
*Maximum Sq. Footage *192 sq. ft. under warranty
Exceptions available upon request
3” 1600 pvc Perforated vanes 2017
PRODUCT SPECIFICATIONS
Flat Perforated Vanes | 3.50” ± 1/16 louver width; 0.024” ± 0.002” louver thickness, PVC. |
Traversing | Blinds shall traverse on self-lubricating wheels to reduce draw force. Blinds shall traverse by means of a wand control. |
Valance (Optional) | Standard, with dust Cover, Executive, 5” returns for outside mount, 3” returns for inside mount. |
Tilt Rod | Extruded aluminum, 4 prong with diameter of 0.235”. |
Rotation | Wand control provides 180° rotation to each vane stem simultaneously through a gear system in the control housing by turning tilt rod actuating a plastic worm and spur gear assembly in each vane carrier. System shall keep louvers fixed until reset by controls. |
Head Rail | Headrail channel shall be of anodized aluminum alloy 1¾” wide x 1¼” high x .040” minimum wall thickness. The headrail will extend the width of the blind. The channel is available in baked enamel white. |
End Controls | Each headrail channel shall be equipped with end control housings made of high quality plastic. End controls shall be covered to enclose sprockets and rotation rod ends. |
Carriers | Each carrier is made of high quality plastic made by DuPont or equivalent. It features an independent self-aligning clutch mechanism in each louver carrier, allowing less friction for self alignment. The shaft walls of the carrier are made of reinforced plastic for strength. The vane stem is made of clear plastic and shall be centered, allowing the track to be reversible. Louvers shall rotate 180° by a 4 prong pinion rod. |
Spacing | Heavy duty self-lubricating plastic link system. Normal spacing is a minimum of 3/8” less than louver width. |
Installation Brackets | Inside or outside snap-in brackets. Intermediate brackets spaced no wider than 36” apart. |
Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted window cov-erings will have ½” deducted at the factory from width. See Product Limits. |
Commercial Contract Color Options | Brite White (V4901), Off White (V4902), Ivory (V4903) |
PRODUCT LIMITS
Controls (Manual) | Min. Width | Max. Width | Min. Drop | *Max. Drop |
---|---|---|---|---|
One Way Stack Left | 9" | 192" | 10" | 144" |
One War Stack Right | 9" | 192" | 10" | 144" |
Center Open | 12" | 192" | 10" | 144" |
*Maximum Sq. Footage *192 sq. ft. under warranty
Exceptions available upon request
Standard Valence 2017
3.5” Executive Valence w/ dust cover 2017
3” Valence w/ dust cover 2017
Vertislim 4000 3.5” Faux Wood Vanes 2017
PRODUCT SPECIFICATIONS
Curved Vanes | 3.50” ± 1/16 louver width; 0.024” louver thickness, Foam composite. |
Traversing | Vertical blinds shall traverse on self-lubricating wheels to reduce draw force, via use of 2.0 mm polyester cord to travel the entire length of head rail |
Valance (Optional) | Standard, with Dust Cover, Executive, 5” returns for outside mount, 3” returns for inside mount. |
Rotation | A #10 nickel-plated steel bead chain loop 180° rotation to each vane stem simultaneously through a gear system in the control housing by turning tilt rod actuating a plastic worm and spur gear assembly in each vane carrier. System shall keep louvers fixed until reset by controls. |
Head Rail | Head rail channel shall be of anodized aluminum alloy 1¾” wide x 1” high x .040” minimum wall thickness. The headrail will extend the width of the blind. The channel is available in baked enamel white. |
End Controls | Each headrail channel shall be equipped with end control housings made of high quality plastic. End controls shall be covered to enclose sprockets and rotation rod ends. End controls shall have rollers or traverse cord to allow extended cord life and ease of operation. |
Carriers | Each carrier is made of high quality plastic made by DuPont or equivalent. It features an independent self-aligning clutch mechanism in each louver carrier, allowing less friction for self alignment. The shaft walls of the carrier are made of reinforced plastic for strength. The vane stem is made of clear plastic and shall be centered, allowing the track to be reversible. Louvers shall rotate 180° by a 4 prong pinion rod. |
Spacing | Heavy duty self-lubricating plastic link system. Normal spacing is a minimum of 3/8” less than louver width. |
Installation Brackets | Inside or outside snap-in brackets. Intermediate brackets spaced no wider than 36” apart. |
Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted window coverings will have ½” deducted at the factory from width. See Product Limits |
PRODUCT LIMITS
Controls (Manual) | Min. Width | Max. Width | Min. Drop | *Max. Drop |
---|---|---|---|---|
One Way Stack Left | 9" | 192" | 10" | 144" |
One War Stack Right | 9" | 192" | 10" | 144" |
Center Open | 12" | 192" | 10" | 144" |
*Maximum Sq. Footage *192 sq. ft. under warranty
Exceptions available upon request
Vertislim 4500 3.5” Faux Wood Vanes 2017
PRODUCT SPECIFICATIONS
Curved Vanes | 3.50” ± 1/16 louver width; 0.024” ± 0.002” louver thickness, Foam composite. |
Traversing | Blinds shall traverse on self-lubricating wheels to reduce draw force. Blinds shall traverse by means of a wand control. |
Valance (Optional) | Standard, with Dust Cover, Executive, 5” returns for outside mount, 3” returns for inside mount. |
Tilt Rod | Extruded aluminum, 4 prong with diameter of 0.235”. |
Rotation | Wand control provides 180° rotation to each vane stem simultaneously through a gear system in the control housing by turning tilt rod actuating a plastic worm and spur gear assembly in each vane carrier. System shall keep louvers fixed until reset by controls. |
Head Rail | Headrail channel shall be of anodized aluminum alloy 1¾” wide x 1¼” high x .040” minimum wall thickness. The headrail will extend the width of the blind. The channel is available in baked enamel white. |
End Controls | Each headrail channel shall be equipped with end control housings made of high quality plastic. End controls shall be covered to enclose sprockets and rotation rod ends. |
Carriers | Each carrier is made of high quality plastic made by DuPont or equivalent. It features an independent self-aligning clutch mechanism in each louver carrier, allowing less friction for self alignment. The shaft walls of the carrier are made of reinforced plastic for strength. The vane stem is made of clear plastic and shall be centered, allowing the track to be reversible. Louvers shall rotate 180° by a 4 prong pinion rod. |
Spacing | Heavy duty self-lubricating plastic link system. Normal spacing is a minimum of 3/8” less than louver width. |
Installation Brackets | Inside or outside snap-in brackets. Intermediate brackets spaced no wider than 36” apart. |
Sizes | Inside or outside snap-in brackets. Intermediate brackets spaced no wider than 36” apart. |
PRODUCT LIMITS
Controls (Manual) | Min. Width | Max. Width | Min. Drop | *Max. Drop |
---|---|---|---|---|
One Way Stack Left | 9" | 192" | 10" | 144" |
One War Stack Right | 9" | 192" | 10" | 144" |
Center Open | 12" | 192" | 10" | 144" |
*Maximum Sq. Footage *120 sq. ft. under warranty
Exceptions available upon request
Vertislim 4000 3.5” pvc Vanes 2017
PRODUCT SPECIFICATIONS
undefined | |
---|---|
Curved Vanes | 3.50” ± 1/16 louver width; 0.024” louver thickness, PVC. |
Traversing | Vertical blinds shall traverse on self-lubricating wheels to reduce draw force, via use of 2.0 mm polyester cord to travel the entire length of head rail. |
Valance (Optional) | Standard, with Dust Cover, Executive, 5” returns for outside mount, 3” returns for inside mount. |
Rotation | A #10 nickel-plated steel bead chain loop 180° rotation to each vane stem simultaneously through a gear system in the control housing by turning tilt rod actuating a plastic worm and spur gear assembly in each vane carrier. System shall keep louvers fixed until reset by controls. |
Head Rail | Head rail channel shall be of anodized aluminum alloy 1¾” wide x 1” high x .040” minimum wall thickness. The headrail will extend the width of the blind. The channel is available in baked enamel white. |
End Controls | Each headrail channel shall be equipped with end control housings made of high quality plastic. End controls shall be covered to enclose sprockets and rotation rod ends. End controls shall have rollers or traverse cord to allow extended cord life and ease of operation. |
Carriers | Each carrier is made of high quality plastic made by DuPont or equivalent. It features an independent self -aligning clutch mechanism in each louver carrier, allowing less friction for self alignment. The shaft walls of the carrier are made of reinforced plastic for strength. The vane stem is made of clear plastic and shall be centered, allowing the track to be reversible. Louvers shall rotate 180° by a 4 prong pinion rod. |
Spacing | Heavy duty self-lubricating plastic link system. Normal spacing is a minimum of 3/8” less than louver width. |
Installation Brackets | Inside or outside snap-in brackets. Intermediate brackets spaced no wider than 36” apart. |
Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted window coverings will have ½” deducted at the factory from width. See Product Limits |
Commercial Contract Color Options | Brite White (V4901), Off White (V4902), Ivory (V4903) |
PRODUCT LIMITS
Controls (Manual) | Min. Width | Max. Width | Min. Drop | *Max. Drop |
---|---|---|---|---|
One Way Stack Left | 9" | 192" | 10" | 144" |
One War Stack Right | 9" | 192" | 10" | 144" |
Center Open | 12" | 192" | 10" | 144" |
*Maximum Sq. Footage *192 sq. ft. under warranty
Exceptions available upon request
Vertislim 4500 3.5” pvc Vanes 2017
PRODUCT SPECIFICATIONS
undefined | |
---|---|
Curved Vanes | 3.50” ± 1/16 louver width; 0.024” ± 0.002” louver thickness, PVC. |
Traversing | Blinds shall traverse on self-lubricating wheels to reduce draw force. Blinds shall traverse by means of a wand control. |
Valance (Optional) | Standard, with Dust Cover, Executive, 5” returns for outside mount, 3” returns for inside mount. |
Tilt Rod | Standard, with Dust Cover, Executive, 5” returns for outside mount, 3” returns for inside mount. |
Rotation | Wand control provides 180° rotation to each vane stem simultaneously through a gear system in the control housing by turning tilt rod actuating a plastic worm and spur gear assembly in each vane carrier. System shall keep louvers fixed until reset by controls. |
Head Rail | Headrail channel shall be of anodized aluminum alloy 1¾” wide x 1¼” high x .040” minimum wall thickness. The headrail will extend the width of the blind. The channel is available in baked enamel white. |
End Controls | Each headrail channel shall be equipped with end control housings made of high quality plastic. End controls shall be covered to enclose sprockets and rotation rod ends. |
Carriers | Each carrier is made of high quality plastic made by DuPont or equivalent. It features an independent self-aligning clutch mechanism in each louver carrier, allowing less friction for self alignment. The shaft walls of the carrier are made of reinforced plastic for strength. The vane stem is made of clear plastic and shall be centered, allowing the track to be reversible. Louvers shall rotate 180° by a 4 prong pinion rod. |
Spacing | Heavy duty self-lubricating plastic link system. Normal spacing is a minimum of 3/8” less than louver width. |
Installation Brackets | Inside or outside snap-in brackets. Intermediate brackets spaced no wider than 36” apart |
Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted window coverings will have ½” deducted at the factory from width. See Product Limits. |
Commercial Contract Color Options | Brite White (V4901), Off White (V4902), Ivory (V4903) |
PRODUCT LIMITS
Controls (Manual) | Min. Width | Max. Width | Min. Drop | *Max. Drop |
---|---|---|---|---|
One Way Stack Left | 9" | 192" | 10" | 144" |
One War Stack Right | 9" | 192" | 10" | 144" |
Center Open | 12" | 192" | 10" | 144" |
*Maximum Sq. Footage *120 sq. ft. under warranty
Exceptions available upon request
