Aluminum
LOCALLY SoURCED. AMERICAN MADE.
Each slat of our 1” horizontal blinds are custom cut by our Monroe, Washington-based manufacturing department using locally-sourced aluminum. We don't leave your customers guessing which size they may need at the big box stores. We provide you with a clean, finished product that will fit their windows perfectly.
Photos

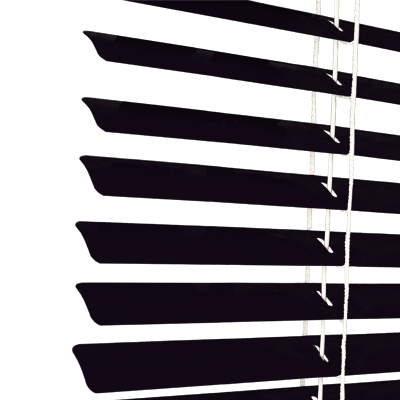

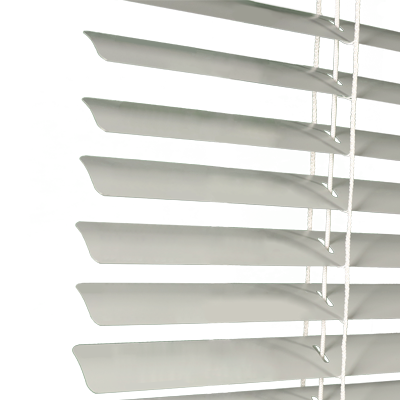

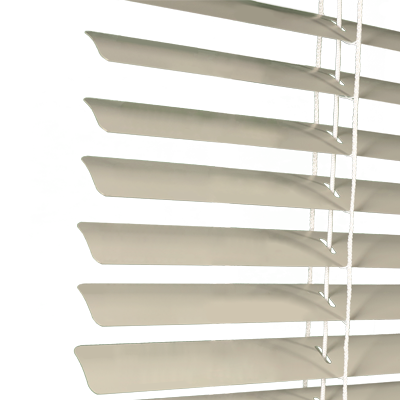

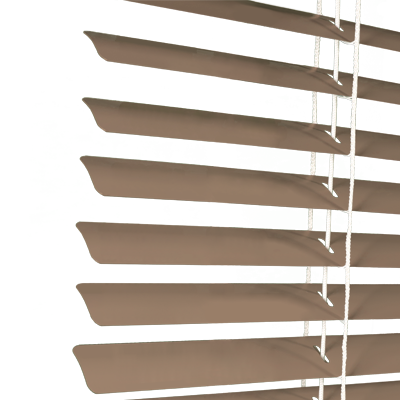

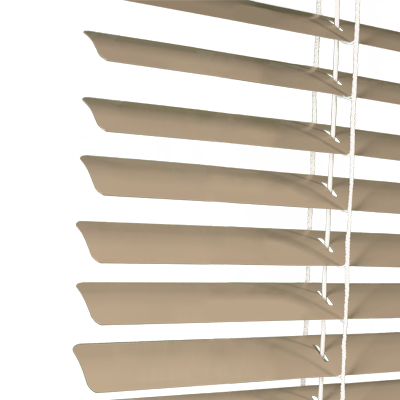

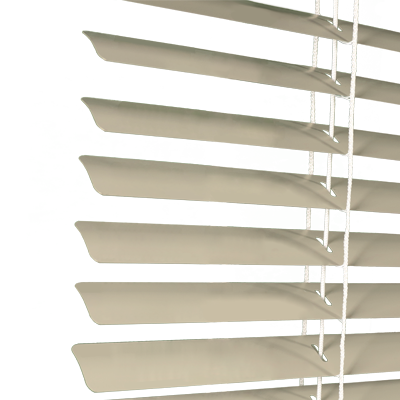

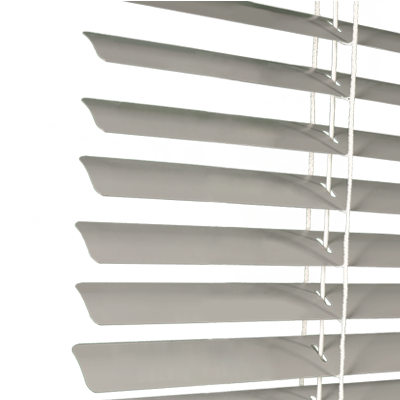

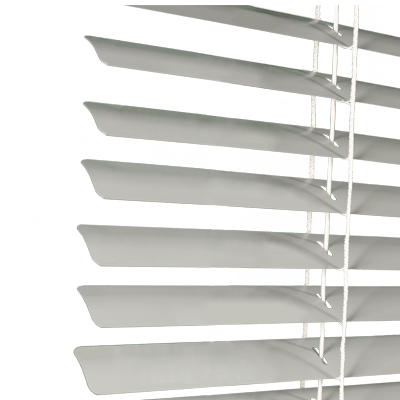

Aluminum colors
Coming soon
*All colors represented on-screen or in print may not be true to product coloring and can be different than the actual product. If you are concerned about product color, please feel free to order a sample swatch with customer service.
Specification Info
Dynasty Series
Dynasty Deluxe
Dynasty Deluxe Premium
Dynasty Economy
Dynasty Economy Premium
Dynasty Privacy
Dynasty Privacy Premium
Dynasty Deluxe
PRODUCUCT SPECIFICATIONS
| General | Assembled by A&I Manufacturing, Inc. Environmentally safe. |
| Headrail | 1 1/2” high by 1 3/4” decorative aluminum headrail. Color coordinated to slats. End caps made of PVC. |
| Bottom Rail | C shaped rail, phosphate coated and vinyl primed steel finished with a polyester baked enamel. Bottom Rail is color coordinated with slats. |
| Slats | Cold rolled spring tempered virgin aluminum slat. To have normal width of 1” and be 0.008” gauge after paint, to provide maximum strength and flexibility. Slats to be finished with a polyester baked enamel. 0.006” gauge slats are available too. |
| Tilter | Worm gear design in an enclosed housing and secured by means of steel rivets to prevent separation. Stem made of clear polycarbonate, the gear of polyacetal and the housing of clear polycarbonate, prelubed prior to assembly to assure durability and ease of use. |
| Tilt Wand | Tilt wand clear plastic measuring approximately 5/16”, fluted with grooves for a non-slip grip. Standard mount on the left side of the blind. |
| Cordless Modules | Cordless modules are constructed with PVC body. Lift cord is wound inside the module. Steel spring provides tension to pull the blind up. A steel D rod links all modules together inside the head rail. White Lift cord. |
| Braided Ladders | 100% Polyester yarn color coordinated with the slats. Spacing not over 21.5 mm (approximately 14 slats per foot of drop). |
| Installation Brackets | Constructed of cold rolled steel. Zinc plated. Hex head screws are included. |
| Handle | 100% PVC with hole to allow accessory pole to operate when the blind is hard to reach / ADA Compliant. |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½”deducted at the factory from width. See Product Limits. End caps included. |
| Fire Safety | Blind materials have been tested in accordance with the procedures outlined in NFPA 701 Fire Test 1. |
PRODUCT LIMITS
| Controls | Min. Width | Max. Width | Min. Drop | Max Drop |
|---|---|---|---|---|
| Cordless | 14 1/2" | 96" | 18" | 72" |
| Tilt Only* | 10" | 122" | 10" | 114" |
| 2 on 1 Headrail | 30" | 144" | 18" | 72" |
| 3 on 1 Headrail | 45" | 144" | 18" | 72" |
*Tilt only, hold downs will be provided. Tilt only will be mounted in the center of the headrail for blinds under 12”.
Compliant with ANSI/WCMA A100.1-2025 Safety Standards
Dynasty Deluxe Premium
PRODUCUCT SPECIFICATIONS
| General | Assembled by A&I Manufacturing, Inc. Environmentally safe. |
| Headrail | 1 1/2” high by 1 3/4” decorative aluminum headrail. Color coordinated to slats. End caps made of PVC. |
| Bottom Rail | C shaped rail, phosphate coated and vinyl primed steel finished with a polyester baked enamel. Bottom Rail is color coordinated with slats. |
| Slats | Cold rolled spring tempered virgin aluminum slat. To have normal width of 1” and be 0.008” gauge after paint, to provide maximum strength and flexibility. Slats to be finished with a polyester baked enamel. 0.006” gauge slats are available too. |
| Tilter | Worm gear design in an enclosed housing and secured by means of steel rivets to prevent separation. Stem made of clear polycarbonate, the gear of polyacetal and the housing of clear polycarbonate, prelubed prior to assembly to assure durability and ease of use. |
| Tilt Wand | Tilt wand clear plastic measuring approximately 5/16”, fluted with grooves for a non-slip grip. Standard mount on the left side of the blind. |
| Cordless Modules | Cordless modules are constructed with PVC body. Lift cord is wound inside the module. Steel spring provides tension to pull the blind up. A steel D rod links all modules together inside the head rail. White Lift cord. |
| Braided Ladders | 100% Polyester yarn color coordinated with the slats. Spacing not over 21.5 mm (approximately 14 slats per foot of drop). |
| Installation Brackets | Constructed of cold rolled steel. Zinc plated. Hex head screws are included. |
| Handle | 100% PVC with hole to allow accessory pole to operate when the blind is hard to reach / ADA Compliant. |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½”deducted at the factory from width. See Product Limits. End caps included. |
| Fire Safety | Blind materials have been tested in accordance with the procedures outlined in NFPA 701 Fire Test 1. |
PRODUCT LIMITS
| Controls | Min. Width | Max. Width | Min. Drop | Max Drop |
|---|---|---|---|---|
| Cordless | 14 1/2" | 96" | 18" | 72" |
| Tilt Only* | 10" | 122" | 10" | 114" |
| 2 on 1 Headrail | 30" | 144" | 18" | 72" |
| 3 on 1 Headrail | 45" | 144" | 18" | 72" |
*Tilt only, hold downs will be provided. Tilt only will be mounted in the center of the headrail for blinds under 12”.
Compliant with ANSI/WCMA A100.1-2025 Safety Standards
Dynasty Economy
PRODUCUCT SPECIFICATIONS
| General | Assembled by A&I Manufacturing, Inc. Environmentally safe. |
| Headrail | 1 1/2” high by 1 3/4” decorative aluminum headrail. Color coordinated to slats. End caps made of PVC. |
| Bottom Rail | C shaped rail, phosphate coated and vinyl primed steel finished with a polyester baked enamel. Bottom Rail is color coordinated with slats. |
| Slats | Cold rolled spring tempered virgin aluminum slat. To have normal width of 1” and be 0.006” gauge after paint, to provide maximum strength and flexibility. Slats to be finished with a polyester baked enamel. 0.008” gauge slats are available too. |
| Tilter | Worm gear design in an enclosed housing and secured by means of steel rivets to prevent separation. Stem made of clear polycarbonate, the gear of polyacetal and the housing of clear polycarbonate, prelubed prior to assembly to assure durability and ease of use. |
| Tilt Wand | Tilt wand clear plastic measuring approximately 5/16”, fluted with grooves for a non-slip grip. Standard mount on the left side of the blind. |
| Cordless Modules | Cordless modules are constructed with PVC body. Lift cord is wound inside the module. Steel spring provides tension to pull the blind up. A steel D rod links all modules together inside the head rail. White Lift cord. |
| Braided Ladders | 100% Polyester yarn color coordinated with the slats. Spacing not over 22.5 mm (approximately 13 slats per foot of drop). |
| Installation Brackets | Constructed of cold rolled steel. Zinc plated. Hex head screws are included. |
| Handle | 100% PVC with hole to allow accessory pole to operate when the blind is hard to reach / ADA Compliant. |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½”deducted at the factory from width. See Product Limits. End caps included. |
| Fire Safety | Blind materials have been tested in accordance with the procedures outlined in NFPA 701 Fire Test 1. |
PRODUCT LIMITS
| Controls | Min. Width | Max. Width | Min. Drop | Max Drop |
|---|---|---|---|---|
| Cordless | 14 1/2" | 96" | 18" | 72" |
| Tilt Only* | 10" | 122" | 10" | 114" |
| 2 on 1 Headrail | 30" | 144" | 18" | 72" |
| 3 on 1 Headrail | 45" | 144" | 18" | 72" |
*Tilt only, hold downs will be provided. Tilt only will be mounted in the center of the headrail for blinds under 12”.
Compliant with ANSI/WCMA A100.1-2025 Safety Standards
Dynasty Economy Premium
PRODUCUCT SPECIFICATIONS
| General | Assembled by A&I Manufacturing, Inc. Environmentally safe. |
| Headrail | 1 1/2” high by 1 3/4” decorative aluminum headrail. Color coordinated to slats. End caps made of PVC. |
| Bottom Rail | C shaped rail, phosphate coated and vinyl primed steel finished with a polyester baked enamel. Bottom Rail is color coordinated with slats. |
| Slats | Cold rolled spring tempered virgin aluminum slat. To have normal width of 1” and be 0.008” gauge after paint, to provide maximum strength and flexibility. Slats to be finished with a polyester baked enamel. 0.006” gauge slats are available too. |
| Tilter | Worm gear design in an enclosed housing and secured by means of steel rivets to prevent separation. Stem made of clear polycarbonate, the gear of polyacetal and the housing of clear polycarbonate, prelubed prior to assembly to assure durability and ease of use. |
| Tilt Wand | Tilt wand clear plastic measuring approximately 5/16”, fluted with grooves for a non-slip grip. Standard mount on the left side of the blind. |
| Cordless Modules | Cordless modules are constructed with PVC body. Lift cord is wound inside the module. Steel spring provides tension to pull the blind up. A steel D rod links all modules together inside the head rail. White Lift cord. |
| Braided Ladders | 100% Polyester yarn color coordinated with the slats. Spacing not over 22.5 mm (approximately 13 slats per foot of drop). |
| Installation Brackets | Constructed of cold rolled steel. Zinc plated. Hex head screws are included. |
| Handle | 100% PVC with hole to allow accessory pole to operate when the blind is hard to reach / ADA Compliant. |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½”deducted at the factory from width. See Product Limits. End caps included. |
| Fire Safety | Blind materials have been tested in accordance with the procedures outlined in NFPA 701 Fire Test 1. |
PRODUCT LIMITS
| Controls | Min. Width | Max. Width | Min. Drop | Max Drop |
|---|---|---|---|---|
| Cordless | 14 1/2" | 96" | 18" | 72" |
| Tilt Only* | 10" | 122" | 10" | 114" |
| 2 on 1 Headrail | 30" | 144" | 18" | 72" |
| 3 on 1 Headrail | 45" | 144" | 18" | 72" |
*Tilt only, hold downs will be provided. Tilt only will be mounted in the center of the headrail for blinds under 12”.
Compliant with ANSI/WCMA A100.1-2025 Safety Standards
Dynasty Privacy
PRODUCUCT SPECIFICATIONS
| General | Assembled by A&I Manufacturing, Inc. Environmentally safe. |
| Headrail | 1 1/2” high by 1 3/4” decorative aluminum headrail. Color coordinated to slats. End caps made of PVC. |
| Bottom Rail | C shaped rail, phosphate coated and vinyl primed steel finished with a polyester baked enamel. Bottom Rail is color coordinated with slats. |
| Slats | Cold rolled spring tempered virgin aluminum slat. To have normal width of 1” and be 0.006” gauge after paint, to provide maximum strength and flexibility. Slats to be finished with a polyester baked enamel. 0.008” gauge slats are available too. |
| Tilter | Worm gear design in an enclosed housing and secured by means of steel rivets to prevent separation. Stem made of clear polycarbonate, the gear of polyacetal and the housing of clear polycarbonate, prelubed prior to assembly to assure durability and ease of use. |
| Tilt Wand | Tilt wand clear plastic measuring approximately 5/16”, fluted with grooves for a non-slip grip. Standard mount on the left side of the blind. |
| Cordless Modules | Cordless modules are constructed with PVC body. Lift cord is wound inside the module. Steel spring provides tension to pull the blind up. A steel D rod links all modules together inside the head rail. White Lift cord. |
| Braided Ladders | 100% Polyester yarn color coordinated with the slats. Spacing not over 18.5 mm (approximately 17 slats per foot of drop). |
| Installation Brackets | Constructed of cold rolled steel. Zinc plated. Hex head screws are included. |
| Handle | 100% PVC with hole to allow accessory pole to operate when the blind is hard to reach / ADA Compliant. |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½”deducted at the factory from width. See Product Limits. End caps included. |
| Fire Safety | Blind materials have been tested in accordance with the procedures outlined in NFPA 701 Fire Test 1. |
PRODUCT LIMITS
| Controls | Min. Width | Max. Width | Min. Drop | Max Drop |
|---|---|---|---|---|
| Cordless | 14 1/2" | 96" | 18" | 72" |
| Tilt Only* | 10" | 122" | 10" | 114" |
| 2 on 1 Headrail | 30" | 144" | 18" | 72" |
| 3 on 1 Headrail | 45" | 144" | 18" | 72" |
*Tilt only, hold downs will be provided. Tilt only will be mounted in the center of the headrail for blinds under 12”.
Compliant with ANSI/WCMA A100.1-2025 Safety Standards
Dynasty Privacy Premium
PRODUCUCT SPECIFICATIONS
| General | Assembled by A&I Manufacturing, Inc. Environmentally safe. |
| Headrail | 1 1/2” high by 1 3/4” decorative aluminum headrail. Color coordinated to slats. End caps made of PVC. |
| Bottom Rail | C shaped rail, phosphate coated and vinyl primed steel finished with a polyester baked enamel. Bottom Rail is color coordinated with slats. |
| Slats | Cold rolled spring tempered virgin aluminum slat. To have normal width of 1” and be 0.008” gauge after paint, to provide maximum strength and flexibility. Slats to be finished with a polyester baked enamel. 0.006” gauge slats are available too. |
| Tilter | Worm gear design in an enclosed housing and secured by means of steel rivets to prevent separation. Stem made of clear polycarbonate, the gear of polyacetal and the housing of clear polycarbonate, prelubed prior to assembly to assure durability and ease of use. |
| Tilt Wand | Tilt wand clear plastic measuring approximately 5/16”, fluted with grooves for a non-slip grip. Standard mount on the left side of the blind. |
| Cordless Modules | Cordless modules are constructed with PVC body. Lift cord is wound inside the module. Steel spring provides tension to pull the blind up. A steel D rod links all modules together inside the head rail. White Lift cord. |
| Braided Ladders | 100% Polyester yarn color coordinated with the slats. Spacing not over 22.5 mm (approximately 13 slats per foot of drop). |
| Installation Brackets | Constructed of cold rolled steel. Zinc plated. Hex head screws are included. |
| Handle | 100% PVC with hole to allow accessory pole to operate when the blind is hard to reach / ADA Compliant. |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½”deducted at the factory from width. See Product Limits. End caps included. |
| Fire Safety | Blind materials have been tested in accordance with the procedures outlined in NFPA 701 Fire Test 1. |
PRODUCT LIMITS
| Controls | Min. Width | Max. Width | Min. Drop | Max Drop |
|---|---|---|---|---|
| Cordless | 14 1/2" | 96" | 18" | 72" |
| Tilt Only* | 10" | 122" | 10" | 114" |
| 2 on 1 Headrail | 30" | 144" | 18" | 72" |
| 3 on 1 Headrail | 45" | 144" | 18" | 72" |
*Tilt only, hold downs will be provided. Tilt only will be mounted in the center of the headrail for blinds under 12”.
Compliant with ANSI/WCMA A100.1-2025 Safety Standards
Motorized Dynasty Series
Motorized Dynasty Deluxe
Motorized Dynasty Deluxe Premium
Motorized Dynasty Economy
Motorized Dynasty Economy Premium
Motorized Dynasty Privacy
Motorized Dynasty Privacy Premium
Motorized Dynasty Deluxe
PRODUCUCT SPECIFICATIONS
| General | Assembled by A&I Manufacturing, Inc. Environmentally safe. |
| Operation | Lift/Tilt motor, battery powered with rechargeable battery pack. |
| Headrail | 1 1/2” high by 1 3/4” decorative aluminum headrail. Color coordinated to slats. End caps made of PVC. |
| Bottom Rail | C shaped rail, phosphate coated and vinyl primed steel finished with a polyester baked enamel. Bottom Rail is color coordinated with slats. |
| Slats | Cold rolled spring tempered virgin aluminum slat. To have normal width of 1” and be 0.008” gauge after paint, to provide maximum strength and flexibility. Slats to be finished with a polyester baked enamel. 0.006” gauge slats are available too. |
| Motor | 12V DC motor powered by a rechargeable battery pack. |
| Handheld Remote | Handheld RF remote with 15 programmable channels. |
| Braided Ladders | 100% Polyester yarn color coordinated with the slats. Spacing not over 21.5 mm (approximately 14 slats per foot of drop). |
| Installation Brackets | Constructed of cold rolled steel. Zinc plated. Hex head screws are included. |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½”deducted at the factory from width. See Product Limits. End caps included. |
| Fire Safety | Blind materials have been tested in accordance with the procedures outlined in NFPA 701 Fire Test 1. |
PRODUCT LIMITS
| Controls | Min. Width | Max. Width | Min. Drop | Max Drop |
|---|---|---|---|---|
| Motorized | 24" | 118" | 12" | 120" |
Compliant with ANSI/WCMA A100.1-2025 Safety Standards
Motorized Dynasty Deluxe Premium
PRODUCUCT SPECIFICATIONS
| General | Assembled by A&I Manufacturing, Inc. Environmentally safe. |
| Operation | Lift/Tilt motor, battery powered with rechargeable battery pack. |
| Headrail | 1 1/2” high by 1 3/4” decorative aluminum headrail. Color coordinated to slats. End caps made of PVC. |
| Bottom Rail | C shaped rail, phosphate coated and vinyl primed steel finished with a polyester baked enamel. Bottom Rail is color coordinated with slats. |
| Slats | Cold rolled spring tempered virgin aluminum slat. To have normal width of 1” and be 0.008” gauge after paint, to provide maximum strength and flexibility. Slats to be finished with a polyester baked enamel. 0.006” gauge slats are available too. |
| Motor | 12V DC motor powered by a rechargeable battery pack. |
| Handheld Remote | Handheld RF remote with 15 programmable channels. |
| Braided Ladders | 100% Polyester yarn color coordinated with the slats. Spacing not over 21.5 mm (approximately 14 slats per foot of drop). |
| Installation Brackets | Constructed of cold rolled steel. Zinc plated. Hex head screws are included. |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½”deducted at the factory from width. See Product Limits. End caps included. |
| Fire Safety | Blind materials have been tested in accordance with the procedures outlined in NFPA 701 Fire Test 1. |
PRODUCT LIMITS
| Controls | Min. Width | Max. Width | Min. Drop | Max Drop |
|---|---|---|---|---|
| Motorized | 24" | 118" | 12" | 120" |
Compliant with ANSI/WCMA A100.1-2025 Safety Standards
Motorized Dynasty Economy
PRODUCUCT SPECIFICATIONS
| General | Assembled by A&I Manufacturing, Inc. Environmentally safe. |
| Operation | Lift/Tilt motor, battery powered with rechargeable battery pack. |
| Headrail | 1 1/2” high by 1 3/4” decorative aluminum headrail. Color coordinated to slats. End caps made of PVC. |
| Bottom Rail | C shaped rail, phosphate coated and vinyl primed steel finished with a polyester baked enamel. Bottom Rail is color coordinated with slats. |
| Slats | Cold rolled spring tempered virgin aluminum slat. To have normal width of 1” and be 0.008” gauge after paint, to provide maximum strength and flexibility. Slats to be finished with a polyester baked enamel. 0.006” gauge slats are available too. |
| Motor | 12V DC motor powered by a rechargeable battery pack. |
| Handheld Remote | Handheld RF remote with 15 programmable channels. |
| Braided Ladders | 100% Polyester yarn color coordinated with the slats. Spacing not over 21.5 mm (approximately 14 slats per foot of drop). |
| Installation Brackets | Constructed of cold rolled steel. Zinc plated. Hex head screws are included. |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½”deducted at the factory from width. See Product Limits. End caps included. |
| Fire Safety | Blind materials have been tested in accordance with the procedures outlined in NFPA 701 Fire Test 1. |
PRODUCT LIMITS
| Controls | Min. Width | Max. Width | Min. Drop | Max Drop |
|---|---|---|---|---|
| Motorized | 24" | 118" | 12" | 120" |
Compliant with ANSI/WCMA A100.1-2025 Safety Standards
Motorized Dynasty Economy Premium
PRODUCUCT SPECIFICATIONS
| General | Assembled by A&I Manufacturing, Inc. Environmentally safe. |
| Operation | Lift/Tilt motor, battery powered with rechargeable battery pack. |
| Headrail | 1 1/2” high by 1 3/4” decorative aluminum headrail. Color coordinated to slats. End caps made of PVC. |
| Bottom Rail | C shaped rail, phosphate coated and vinyl primed steel finished with a polyester baked enamel. Bottom Rail is color coordinated with slats. |
| Slats | Cold rolled spring tempered virgin aluminum slat. To have normal width of 1” and be 0.008” gauge after paint, to provide maximum strength and flexibility. Slats to be finished with a polyester baked enamel. 0.006” gauge slats are available too. |
| Motor | 12V DC motor powered by a rechargeable battery pack. |
| Handheld Remote | Handheld RF remote with 15 programmable channels. |
| Braided Ladders | 100% Polyester yarn color coordinated with the slats. Spacing not over 21.5 mm (approximately 14 slats per foot of drop). |
| Installation Brackets | Constructed of cold rolled steel. Zinc plated. Hex head screws are included. |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½”deducted at the factory from width. See Product Limits. End caps included. |
| Fire Safety | Blind materials have been tested in accordance with the procedures outlined in NFPA 701 Fire Test 1. |
PRODUCT LIMITS
| Controls | Min. Width | Max. Width | Min. Drop | Max Drop |
|---|---|---|---|---|
| Motorized | 24" | 118" | 12" | 120" |
Compliant with ANSI/WCMA A100.1-2025 Safety Standards
Motorized Dynasty Privacy
PRODUCUCT SPECIFICATIONS
| General | Assembled by A&I Manufacturing, Inc. Environmentally safe. |
| Operation | Lift/Tilt motor, battery powered with rechargeable battery pack. |
| Headrail | 1 1/2” high by 1 3/4” decorative aluminum headrail. Color coordinated to slats. End caps made of PVC. |
| Bottom Rail | C shaped rail, phosphate coated and vinyl primed steel finished with a polyester baked enamel. Bottom Rail is color coordinated with slats. |
| Slats | Cold rolled spring tempered virgin aluminum slat. To have normal width of 1” and be 0.008” gauge after paint, to provide maximum strength and flexibility. Slats to be finished with a polyester baked enamel. 0.006” gauge slats are available too. |
| Motor | 12V DC motor powered by a rechargeable battery pack. |
| Handheld Remote | Handheld RF remote with 15 programmable channels. |
| Braided Ladders | 100% Polyester yarn color coordinated with the slats. Spacing not over 21.5 mm (approximately 14 slats per foot of drop). |
| Installation Brackets | Constructed of cold rolled steel. Zinc plated. Hex head screws are included. |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½”deducted at the factory from width. See Product Limits. End caps included. |
| Fire Safety | Blind materials have been tested in accordance with the procedures outlined in NFPA 701 Fire Test 1. |
PRODUCT LIMITS
| Controls | Min. Width | Max. Width | Min. Drop | Max Drop |
|---|---|---|---|---|
| Motorized | 24" | 118" | 12" | 120" |
Compliant with ANSI/WCMA A100.1-2025 Safety Standards
Motorized Dynasty Privacy Premium
PRODUCUCT SPECIFICATIONS
| General | Assembled by A&I Manufacturing, Inc. Environmentally safe. |
| Operation | Lift/Tilt motor, battery powered with rechargeable battery pack. |
| Headrail | 1 1/2” high by 1 3/4” decorative aluminum headrail. Color coordinated to slats. End caps made of PVC. |
| Bottom Rail | C shaped rail, phosphate coated and vinyl primed steel finished with a polyester baked enamel. Bottom Rail is color coordinated with slats. |
| Slats | Cold rolled spring tempered virgin aluminum slat. To have normal width of 1” and be 0.008” gauge after paint, to provide maximum strength and flexibility. Slats to be finished with a polyester baked enamel. 0.006” gauge slats are available too. |
| Motor | 12V DC motor powered by a rechargeable battery pack. |
| Handheld Remote | Handheld RF remote with 15 programmable channels. |
| Braided Ladders | 100% Polyester yarn color coordinated with the slats. Spacing not over 21.5 mm (approximately 14 slats per foot of drop). |
| Installation Brackets | Constructed of cold rolled steel. Zinc plated. Hex head screws are included. |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½”deducted at the factory from width. See Product Limits. End caps included. |
| Fire Safety | Blind materials have been tested in accordance with the procedures outlined in NFPA 701 Fire Test 1. |
PRODUCT LIMITS
| Controls | Min. Width | Max. Width | Min. Drop | Max Drop |
|---|---|---|---|---|
| Motorized | 24" | 118" | 12" | 120" |
Compliant with ANSI/WCMA A100.1-2025 Safety Standards
Motorized Dynasty Wand Series
Motorized Dynasty Wand Deluxe
Motorized Dynasty Wand Deluxe Premium
Motorized Dynasty Wand Economy
Motorized Dynasty Wand Economy Premium
Motorized Dynasty Wand Privacy
Motorized Dynasty Wand Privacy Premium
Motorized Dynasty Wand Deluxe
PRODUCUCT SPECIFICATIONS
| General | Assembled by A&I Manufacturing, Inc. Environmentally safe. |
| Operation | Lift/Tilt motor, battery powered with rechargeable battery pack. |
| Headrail | 1.5” high by 1.75” decorative aluminum headrail. Color coordinated to slats. End caps made of PVC. |
| Bottom Rail | C shaped rail, phosphate coated and vinyl primed steel finished with a polyester baked enamel. Bottom Rail is color coordinated with slats. |
| Slats | Cold rolled spring tempered virgin aluminum slat. To have normal width of 1” and be 0.006” gauge after paint, to provide maximum strength and flexibility. Slats to be finished with a polyester baked enamel. 0.008” gauge slats are available too. |
| Motor | 12V DC motor powered by a rechargeable battery pack. |
| Motorized Wand | Wand is clear with a white internal cord, ranging from 12” to 60” in length with two buttons for raising and lowering the blind. Wand control is on the right side of the blind unless otherwise specified. |
| Braided Ladders | 100% Polyester yarn color coordinated with the slats. Spacing not over 21.5 mm (approximately 14 slats per foot of drop). |
| Installation Brackets | Constructed of cold rolled steel. Zinc plated. Hex head screws are included. |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½”deducted at the factory from width. See Product Limits. End caps included. |
| Fire Safety | Blind materials have been tested in accordance with the procedures outlined in NFPA 701 Fire Test 1. |
PRODUCT LIMITS
| Controls | Min. Width | Max. Width | Min. Drop | Max Drop |
|---|---|---|---|---|
| Motorized | 24" | 118" | 12" | 120" |
Compliant with ANSI/WCMA A100.1-2025 Safety Standards
Motorized Dynasty Wand Deluxe Premium
PRODUCUCT SPECIFICATIONS
| General | Assembled by A&I Manufacturing, Inc. Environmentally safe. |
| Operation | Lift/Tilt motor, battery powered with rechargeable battery pack. |
| Headrail | 1.5” high by 1.75” decorative aluminum headrail. Color coordinated to slats. End caps made of PVC. |
| Bottom Rail | C shaped rail, phosphate coated and vinyl primed steel finished with a polyester baked enamel. Bottom Rail is color coordinated with slats. |
| Slats | Cold rolled spring tempered virgin aluminum slat. To have normal width of 1” and be 0.008” gauge after paint, to provide maximum strength and flexibility. Slats to be finished with a polyester baked enamel. 0.006” gauge slats are available too. |
| Motor | 12V DC motor powered by a rechargeable battery pack. |
| Motorized Wand | Wand is clear with a white internal cord, ranging from 12” to 60” in length with two buttons for raising and lowering the blind. Wand control is on the right side of the blind unless otherwise specified. |
| Braided Ladders | 100% Polyester yarn color coordinated with the slats. Spacing not over 21.5 mm (approximately 14 slats per foot of drop). |
| Installation Brackets | Constructed of cold rolled steel. Zinc plated. Hex head screws are included. |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½”deducted at the factory from width. See Product Limits. End caps included. |
| Fire Safety | Blind materials have been tested in accordance with the procedures outlined in NFPA 701 Fire Test 1. |
PRODUCT LIMITS
| Controls | Min. Width | Max. Width | Min. Drop | Max Drop |
|---|---|---|---|---|
| Motorized | 24" | 118" | 12" | 120" |
Compliant with ANSI/WCMA A100.1-2025 Safety Standards
Motorized Dynasty Wand Economy
PRODUCUCT SPECIFICATIONS
| General | Assembled by A&I Manufacturing, Inc. Environmentally safe. |
| Operation | Lift/Tilt motor, battery powered with rechargeable battery pack. |
| Headrail | 1.5” high by 1.75” decorative aluminum headrail. Color coordinated to slats. End caps made of PVC. |
| Bottom Rail | C shaped rail, phosphate coated and vinyl primed steel finished with a polyester baked enamel. Bottom Rail is color coordinated with slats. |
| Slats | Cold rolled spring tempered virgin aluminum slat. To have normal width of 1” and be 0.006” gauge after paint, to provide maximum strength and flexibility. Slats to be finished with a polyester baked enamel. 0.008” gauge slats are available too. |
| Motor | 12V DC motor powered by a rechargeable battery pack. |
| Motorized Wand | Wand is clear with a white internal cord, ranging from 12” to 60” in length with two buttons for raising and lowering the blind. Wand control is on the right side of the blind unless otherwise specified. |
| Braided Ladders | 100% Polyester yarn color coordinated with the slats. Spacing not over 22.5 mm (approximately 13 slats per foot of drop). |
| Installation Brackets | Constructed of cold rolled steel. Zinc plated. Hex head screws are included. |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½”deducted at the factory from width. See Product Limits. End caps included. |
| Fire Safety | Blind materials have been tested in accordance with the procedures outlined in NFPA 701 Fire Test 1. |
PRODUCT LIMITS
| Controls | Min. Width | Max. Width | Min. Drop | Max Drop |
|---|---|---|---|---|
| Motorized | 24" | 118" | 12" | 120" |
Compliant with ANSI/WCMA A100.1-2025 Safety Standards
Motorized Dynasty Wand Economy Premium
PRODUCUCT SPECIFICATIONS
| General | Assembled by A&I Manufacturing, Inc. Environmentally safe. |
| Operation | Lift/Tilt motor, battery powered with rechargeable battery pack. |
| Headrail | 1.5” high by 1.75” decorative aluminum headrail. Color coordinated to slats. End caps made of PVC. |
| Bottom Rail | C shaped rail, phosphate coated and vinyl primed steel finished with a polyester baked enamel. Bottom Rail is color coordinated with slats. |
| Slats | Cold rolled spring tempered virgin aluminum slat. To have normal width of 1” and be 0.008” gauge after paint, to provide maximum strength and flexibility. Slats to be finished with a polyester baked enamel. 0.006” gauge slats are available too. |
| Motor | 12V DC motor powered by a rechargeable battery pack. |
| Motorized Wand | Wand is clear with a white internal cord, ranging from 12” to 60” in length with two buttons for raising and lowering the blind. Wand control is on the right side of the blind unless otherwise specified. |
| Braided Ladders | 100% Polyester yarn color coordinated with the slats. Spacing not over 21.5 mm (approximately 14 slats per foot of drop). |
| Installation Brackets | Constructed of cold rolled steel. Zinc plated. Hex head screws are included. |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½”deducted at the factory from width. See Product Limits. End caps included. |
| Fire Safety | Blind materials have been tested in accordance with the procedures outlined in NFPA 701 Fire Test 1. |
PRODUCT LIMITS
| Controls | Min. Width | Max. Width | Min. Drop | Max Drop |
|---|---|---|---|---|
| Motorized | 24" | 118" | 12" | 120" |
Compliant with ANSI/WCMA A100.1-2025 Safety Standards
Motorized Dynasty Wand Privacy
PRODUCUCT SPECIFICATIONS
| General | Assembled by A&I Manufacturing, Inc. Environmentally safe. |
| Operation | Lift/Tilt motor, battery powered with rechargeable battery pack. |
| Headrail | 1.5” high by 1.75” decorative aluminum headrail. Color coordinated to slats. End caps made of PVC. |
| Bottom Rail | C shaped rail, phosphate coated and vinyl primed steel finished with a polyester baked enamel. Bottom Rail is color coordinated with slats. |
| Slats | Cold rolled spring tempered virgin aluminum slat. To have normal width of 1” and be 0.006” gauge after paint, to provide maximum strength and flexibility. Slats to be finished with a polyester baked enamel. 0.008” gauge slats are available too. |
| Motor | 12V DC motor powered by a rechargeable battery pack. |
| Motorized Wand | Wand is clear with a white internal cord, ranging from 12” to 60” in length with two buttons for raising and lowering the blind. Wand control is on the right side of the blind unless otherwise specified. |
| Braided Ladders | 100% Polyester yarn color coordinated with the slats. Spacing not over 18.5 mm (approximately 17 slats per foot of drop). |
| Installation Brackets | Constructed of cold rolled steel. Zinc plated. Hex head screws are included. |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½”deducted at the factory from width. See Product Limits. End caps included. |
| Fire Safety | Blind materials have been tested in accordance with the procedures outlined in NFPA 701 Fire Test 1. |
PRODUCT LIMITS
| Controls | Min. Width | Max. Width | Min. Drop | Max Drop |
|---|---|---|---|---|
| Motorized | 24" | 118" | 12" | 120" |
Compliant with ANSI/WCMA A100.1-2025 Safety Standards
Motorized Dynasty Wand Privacy Premium
PRODUCUCT SPECIFICATIONS
| General | Assembled by A&I Manufacturing, Inc. Environmentally safe. |
| Operation | Lift/Tilt motor, battery powered with rechargeable battery pack. |
| Headrail | 1.5” high by 1.75” decorative aluminum headrail. Color coordinated to slats. End caps made of PVC. |
| Bottom Rail | C shaped rail, phosphate coated and vinyl primed steel finished with a polyester baked enamel. Bottom Rail is color coordinated with slats. |
| Slats | Cold rolled spring tempered virgin aluminum slat. To have normal width of 1” and be 0.008” gauge after paint, to provide maximum strength and flexibility. Slats to be finished with a polyester baked enamel. 0.006” gauge slats are available too. |
| Motor | 12V DC motor powered by a rechargeable battery pack. |
| Motorized Wand | Wand is clear with a white internal cord, ranging from 12” to 60” in length with two buttons for raising and lowering the blind. Wand control is on the right side of the blind unless otherwise specified. |
| Braided Ladders | 100% Polyester yarn color coordinated with the slats. Spacing not over 18.5 mm (approximately 17 slats per foot of drop). |
| Installation Brackets | Constructed of cold rolled steel. Zinc plated. Hex head screws are included. |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½”deducted at the factory from width. See Product Limits. End caps included. |
| Fire Safety | Blind materials have been tested in accordance with the procedures outlined in NFPA 701 Fire Test 1. |
PRODUCT LIMITS
| Controls | Min. Width | Max. Width | Min. Drop | Max Drop |
|---|---|---|---|---|
| Motorized | 24" | 118" | 12" | 120" |
Compliant with ANSI/WCMA A100.1-2025 Safety Standards
Empire Series
Empire Deluxe
Empire Deluxe Premium
Empire Economy
Empire Economy Premium
Empire Privacy
Empire Privacy Premium
Empire Deluxe
PRODUCUCT SPECIFICATIONS
| General | Assembled by A&I Manufacturing, Inc. Environmentally safe. |
| Headrail | 1” high by 1 1/2” decorative headrail. Phosphate coated vinyl primed steel finished with a polyester baked enamel color coordinated to slats. |
| Bottom Rail | C shaped rail, phosphate coated and vinyl primed steel finished with a polyester baked enamel. Bottom Rail is color coordinated with slats. |
| Slats | Cold rolled spring tempered virgin aluminum slat. To have normal width of 1” and be 0.006” gauge after paint, to provide maximum strength and flexibility. Slats to be finished with a polyester baked enamel. 0.008” gauge slats are available too. |
| Tilter | Worm gear design in an enclosed housing and secured by means of steel rivets to prevent separation. Stem made of clear polycarbonate, the gear of polyacetal and the housing of clear polycarbonate, prelubed prior to assembly to assure durability and ease of use. |
| Tilt Wands | Tilt wand clear plastic measuring approximately 5/16”, fluted with grooves for a non-slip grip. Standard mount on the left side of the blind. |
| Cordless Modules | Cordless modules are constructed with PVC body. Lift cord is wound inside the module. Steel spring provides tension to pull the blind up. White Lift cord. |
| Braided Ladders | 100% polyester yarn color coordinated with the slats. Spacing not over 21.5 mm (approximately 14 slats per foot of drop). |
| Installation Brackets | Constructed of cold rolled steel. Zinc plated. Hex head screws are included. |
| Handle | 100% PVC with hole to allow accessory pole to operate when the blind is hard to reach / ADA Compliant. |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½”deducted at the factory from width. See Product Limits. End caps included. |
| Fire Safety | Blind materials have been tested in accordance with the procedures outlined in NFPA 701 Fire Test 1. |
PRODUCT LIMITS
| Controls | Min. Width | Max. Width | Min. Drop | Max Drop |
|---|---|---|---|---|
| Standard Cordless | 14 1/2" | 96" | 18" | 96" |
| Tilt Only* | 7" | 132" | 6" | 126" |
| 2 on 1 Headrail | 30" | 144" | 6" | 96" |
| 3 on 1 Headrail | 45" | 144" | 6" | 96" |
*Tilt Only, hold downs will be provided. Tilt Wand will be mounted in the center of the headrail for blinds under 12”.
Compliant with ANSI/WCMA A100.1-2025 Safety Standards
Empire Deluxe Premium
PRODUCUCT SPECIFICATIONS
| General | Assembled by A&I Manufacturing, Inc. Environmentally safe. |
| Headrail | 1” high by 1 1/2” decorative headrail. Phosphate coated vinyl primed steel finished with a polyester baked enamel color coordinated to slats. |
| Bottom Rail | C shaped rail, phosphate coated and vinyl primed steel finished with a polyester baked enamel. Bottom Rail is color coordinated with slats. |
| Slats | Cold rolled spring tempered virgin aluminum slat. To have normal width of 1” and be 0.006” gauge after paint, to provide maximum strength and flexibility. Slats to be finished with a polyester baked enamel. 0.008” gauge slats are available too. |
| Tilter | Worm gear design in an enclosed housing and secured by means of steel rivets to prevent separation. Stem made of clear polycarbonate, the gear of polyacetal and the housing of clear polycarbonate, prelubed prior to assembly to assure durability and ease of use. |
| Tilt Wands | Tilt wand clear plastic measuring approximately 5/16”, fluted with grooves for a non-slip grip. Standard mount on the left side of the blind. |
| Cordless Modules | Cordless modules are constructed with PVC body. Lift cord is wound inside the module. Steel spring provides tension to pull the blind up. White Lift cord. |
| Braided Ladders | 100% polyester yarn color coordinated with the slats. Spacing not over 21.5 mm (approximately 14 slats per foot of drop). |
| Installation Brackets | Constructed of cold rolled steel. Zinc plated. Hex head screws are included. |
| Handle | 100% PVC with hole to allow accessory pole to operate when the blind is hard to reach / ADA Compliant. |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½”deducted at the factory from width. See Product Limits. End caps included. |
| Fire Safety | Blind materials have been tested in accordance with the procedures outlined in NFPA 701 Fire Test 1. |
PRODUCT LIMITS
| Controls | Min. Width | Max. Width | Min. Drop | Max Drop |
|---|---|---|---|---|
| Standard Cordless | 14 1/2" | 96" | 18" | 96" |
| Tilt Only* | 7" | 132" | 6" | 126" |
| 2 on 1 Headrail | 30" | 144" | 6" | 96" |
| 3 on 1 Headrail | 45" | 144" | 6" | 96" |
*Tilt Only, hold downs will be provided. Tilt Wand will be mounted in the center of the headrail for blinds under 12”.
Compliant with ANSI/WCMA A100.1-2025 Safety Standards
Empire Economy
PRODUCUCT SPECIFICATIONS
| General | Assembled by A&I Manufacturing, Inc. Environmentally safe. |
| Headrail | 1” high by 1 1/2” decorative headrail. Phosphate coated vinyl primed steel finished with a polyester baked enamel color coordinated to slats. |
| Bottom Rail | C shaped rail, phosphate coated and vinyl primed steel finished with a polyester baked enamel. Bottom Rail is color coordinated with slats. |
| Slats | Cold rolled spring tempered virgin aluminum slat. To have normal width of 1” and be 0.006” gauge after paint, to provide maximum strength and flexibility. Slats to be finished with a polyester baked enamel. 0.008” gauge slats are available too. |
| Tilter | Worm gear design in an enclosed housing and secured by means of steel rivets to prevent separation. Stem made of clear polycarbonate, the gear of polyacetal and the housing of clear polycarbonate, prelubed prior to assembly to assure durability and ease of use. |
| Tilt Wands | Tilt wand clear plastic measuring approximately 5/16”, fluted with grooves for a non-slip grip. Standard mount on the left side of the blind. |
| Cordless Modules | Cordless modules are constructed with PVC body. Lift cord is wound inside the module. Steel spring provides tension to pull the blind up. White Lift cord. |
| Braided Ladders | 100% polyester yarn color coordinated with the slats. Spacing not over 22.5 mm (approximately 13 slats per foot of drop). |
| Installation Brackets | Constructed of cold rolled steel. Zinc plated. Hex head screws are included. |
| Optional Handle | 100% PVC with hole to allow accessory pole to operate when the blind is hard to reach / ADA Compliant. |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½”deducted at the factory from width. See Product Limits. End caps included. |
| Fire Safety | Blind materials have been tested in accordance with the procedures outlined in NFPA 701 Fire Test 1. |
PRODUCT LIMITS
| Controls | Min. Width | Max. Width | Min. Drop | Max Drop |
|---|---|---|---|---|
| Standard Cordless | 14 1/2" | 96" | 18" | 96" |
| Tilt Only* | 7" | 132" | 6" | 126" |
| 2 on 1 Headrail | 30" | 144" | 6" | 96" |
| 3 on 1 Headrail | 45" | 144" | 6" | 96" |
*Tilt Only, hold downs will be provided. Tilt Wand will be mounted in the center of the headrail for blinds under 12”.
Compliant with ANSI/WCMA A100.1-2025 Safety Standards
Empire Economy Premium
PRODUCUCT SPECIFICATIONS
| General | Assembled by A&I Manufacturing, Inc. Environmentally safe. |
| Headrail | 1” high by 1 1/2” decorative headrail. Phosphate coated vinyl primed steel finished with a polyester baked enamel color coordinated to slats. |
| Bottom Rail | C shaped rail, phosphate coated and vinyl primed steel finished with a polyester baked enamel. Bottom Rail is color coordinated with slats. |
| Slats | Cold rolled spring tempered virgin aluminum slat. To have normal width of 1” and be 0.006” gauge after paint, to provide maximum strength and flexibility. Slats to be finished with a polyester baked enamel. 0.008” gauge slats are available too. |
| Tilter | Worm gear design in an enclosed housing and secured by means of steel rivets to prevent separation. Stem made of clear polycarbonate, the gear of polyacetal and the housing of clear polycarbonate, prelubed prior to assembly to assure durability and ease of use. |
| Tilt Wands | Tilt wand clear plastic measuring approximately 5/16”, fluted with grooves for a non-slip grip. Standard mount on the left side of the blind. |
| Cordless Modules | Cordless modules are constructed with PVC body. Lift cord is wound inside the module. Steel spring provides tension to pull the blind up. White Lift cord. |
| Braided Ladders | 100% polyester yarn color coordinated with the slats. Spacing not over 22.5 mm (approximately 13 slats per foot of drop). |
| Installation Brackets | Constructed of cold rolled steel. Zinc plated. Hex head screws are included. |
| Handle | 100% PVC with hole to allow accessory pole to operate when the blind is hard to reach / ADA Compliant. |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½”deducted at the factory from width. See Product Limits. End caps included. |
| Fire Safety | Blind materials have been tested in accordance with the procedures outlined in NFPA 701 Fire Test 1. |
PRODUCT LIMITS
| Controls | Min. Width | Max. Width | Min. Drop | Max Drop |
|---|---|---|---|---|
| Standard Cordless | 14 1/2" | 96" | 18" | 96" |
| Tilt Only* | 7" | 132" | 6" | 126" |
| 2 on 1 Headrail | 30" | 144" | 6" | 96" |
| 3 on 1 Headrail | 45" | 144" | 6" | 96" |
*Tilt Only, hold downs will be provided. Tilt Wand will be mounted in the center of the headrail for blinds under 12”.
Compliant with ANSI/WCMA A100.1-2025 Safety Standards
Empire Privacy
PRODUCUCT SPECIFICATIONS
| General | Assembled by A&I Manufacturing, Inc. Environmentally safe. |
| Headrail | 1” high by 1 1/2” decorative headrail. Phosphate coated vinyl primed steel finished with a polyester baked enamel color coordinated to slats. |
| Bottom Rail | C shaped rail, phosphate coated and vinyl primed steel finished with a polyester baked enamel. Bottom Rail is color coordinated with slats. |
| Slats | Cold rolled spring tempered virgin aluminum slat. To have normal width of 1” and be 0.006” gauge after paint, to provide maximum strength and flexibility. Slats to be finished with a polyester baked enamel. 0.008” gauge slats are available too. |
| Tilter | Worm gear design in an enclosed housing and secured by means of steel rivets to prevent separation. Stem made of clear polycarbonate, the gear of polyacetal and the housing of clear polycarbonate, prelubed prior to assembly to assure durability and ease of use. |
| Tilt Wands | Tilt wand clear plastic measuring approximately 5/16”, fluted with grooves for a non-slip grip. Standard mount on the left side of the blind. |
| Cordless Modules | Cordless modules are constructed with PVC body. Lift cord is wound inside the module. Steel spring provides tension to pull the blind up. White Lift cord. |
| Braided Ladders | 100% polyester yarn color coordinated with the slats. Spacing not over 18.5 mm (approximately 17 slats per foot of drop). |
| Installation Brackets | Constructed of cold rolled steel. Zinc plated. Hex head screws are included. |
| Optional Handle | 100% PVC with hole to allow accessory pole to operate when the blind is hard to reach / ADA Compliant. |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½”deducted at the factory from width. See Product Limits. End caps included. |
| Fire Safety | Blind materials have been tested in accordance with the procedures outlined in NFPA 701 Fire Test 1. |
PRODUCT LIMITS
| Controls | Min. Width | Max. Width | Min. Drop | Max Drop |
|---|---|---|---|---|
| Standard Cordless | 14 1/2" | 96" | 18" | 96" |
| Tilt Only* | 7" | 132" | 6" | 126" |
| 2 on 1 Headrail | 30" | 144" | 6" | 96" |
| 3 on 1 Headrail | 45" | 144" | 6" | 96" |
*Tilt Only, hold downs will be provided. Tilt Wand will be mounted in the center of the headrail for blinds under 12”.
Compliant with ANSI/WCMA A100.1-2025 Safety Standards
Empire Privacy Premium
PRODUCUCT SPECIFICATIONS
| General | Assembled by A&I Manufacturing, Inc. Environmentally safe. |
| Headrail | 1” high by 1 1/2” decorative headrail. Phosphate coated vinyl primed steel finished with a polyester baked enamel color coordinated to slats. |
| Bottom Rail | C shaped rail, phosphate coated and vinyl primed steel finished with a polyester baked enamel. Bottom Rail is color coordinated with slats. |
| Slats | Cold rolled spring tempered virgin aluminum slat. To have normal width of 1” and be 0.006” gauge after paint, to provide maximum strength and flexibility. Slats to be finished with a polyester baked enamel. 0.008” gauge slats are available too. |
| Tilter | Worm gear design in an enclosed housing and secured by means of steel rivets to prevent separation. Stem made of clear polycarbonate, the gear of polyacetal and the housing of clear polycarbonate, prelubed prior to assembly to assure durability and ease of use. |
| Tilt Wands | Tilt wand clear plastic measuring approximately 5/16”, fluted with grooves for a non-slip grip. Standard mount on the left side of the blind. |
| Cordless Modules | Cordless modules are constructed with PVC body. Lift cord is wound inside the module. Steel spring provides tension to pull the blind up. White Lift cord. |
| Braided Ladders | 100% polyester yarn color coordinated with the slats. Spacing not over 18.5 mm (approximately 17 slats per foot of drop). |
| Installation Brackets | Constructed of cold rolled steel. Zinc plated. Hex head screws are included. |
| Optional Handle | 100% PVC with hole to allow accessory pole to operate when the blind is hard to reach / ADA Compliant. |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have ½”deducted at the factory from width. See Product Limits. End caps included. |
| Fire Safety | Blind materials have been tested in accordance with the procedures outlined in NFPA 701 Fire Test 1. |
PRODUCT LIMITS
| Controls | Min. Width | Max. Width | Min. Drop | Max Drop |
|---|---|---|---|---|
| Standard Cordless | 14 1/2" | 96" | 18" | 96" |
| Tilt Only* | 7" | 132" | 6" | 126" |
| 2 on 1 Headrail | 30" | 144" | 6" | 96" |
| 3 on 1 Headrail | 45" | 144" | 6" | 96" |
*Tilt Only, hold downs will be provided. Tilt Wand will be mounted in the center of the headrail for blinds under 12”.
Compliant with ANSI/WCMA A100.1-2025 Safety Standards
Noble Series
Noble Series 2” Aluminum
PRODUCUCT SPECIFICATIONS
| General | Assembled by A&I Manufacturing, Inc. Environmentally safe. |
| Headrail | 2” x 2” x 0.024” Steel. Treated to resist corrosion. Baked-on paint, color coordinated to slats. |
| Bottom Rail | Enclosed 0.024” Steel. Treated to resist corrosion. Baked-on paint, color coordinated to slats. |
| Slats | Aluminum Heat Treated and Tempered, 2” wide x .008” thick. |
| Valence | 1 Slat. 2 Slats Optional. |
| Tilter | Worm gear construction, enclosed in housing of engineered polymer. May be positioned at right or left. |
| Tilt Wands | Extruded, clear solid acrylic with tubular construction. |
| Cordless Modules | Constructed with opaque PVC body. Lift cord is wound inside the module. Steel spring provides tension to pull the shade up. |
| Braided Ladders | 100% polyester yarn color coordinated with the slats. Spacing no more than 44mm (approximately 7 slats per foot of drop). |
| Installation Brackets | End brackets are 2” x 2” x .042” steel box brackets. Blinds over 48” have zinc plated intermediate supports. |
| Sizes | Outside mounted window coverings will be made to exact ordered measurements. Inside mounted horizontal blinds will have 1/2” deducted at the factory from width. |
PRODUCT LIMITS
| Controls | Min. Width | Max. Width | Min. Drop | Max Drop |
|---|---|---|---|---|
| Cordless | 16" | 84" | 10" | 84" |
| Tilt Only* | 8" | 122" | 6" | 120" |
*Tilt Only, hold downs will be provided. Tilt Wand will be mounted in the center of the headrail for blinds under 12”.
Compliant with ANSI/WCMA A100.1-2025 Safety Standards
